7.5.3 OBW Configuration

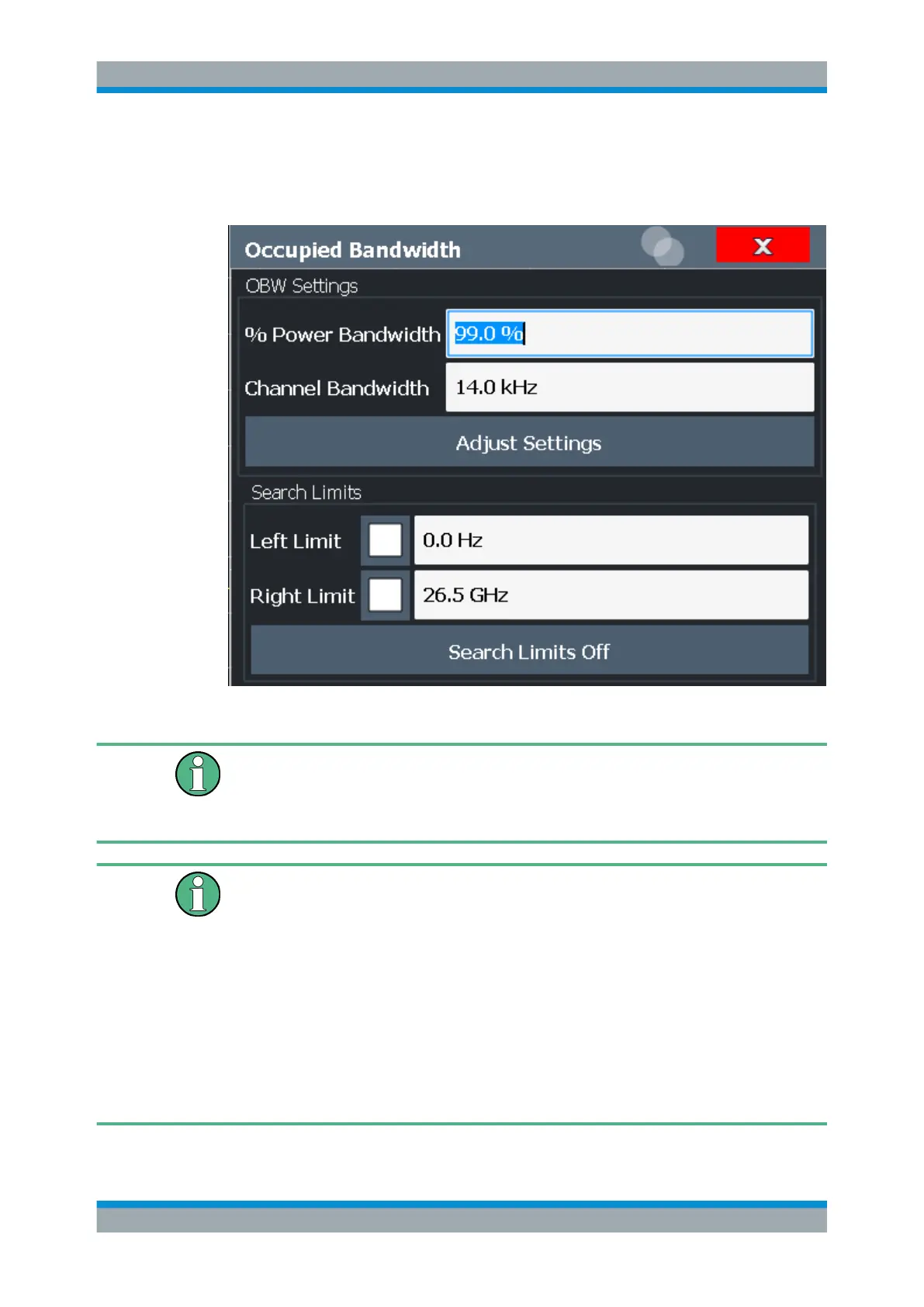

Access: "Overview" > "Select Measurement" > "OBW" > "OBW Config"
This measurement is not available in zero span.
Configuring search limits for OBW measurement
The OBW measurement uses the same search limits as defined for marker search
(see " Search Limits " on page 437). However, only the left and right limits are consid-
ered.
Auto measurement
Use the Auto All function to determine the required measurement parameters automat-
ically.
The following settings are determined:
●
Center frequency
●
Span: determined signal bandwidth plus 40 %
●
RBW = Span/1000
●
Sweep time = <Sweep_time>
min
*10
●
For pulsed signals: gating parameters
See also Chapter 7.1, "Auto Measurements", on page 121.
Occupied Bandwidth Measurement (OBW)
