Common Analysis and Display Functions
R&S
®
FSVA3000/ R&S
®
FSV3000
429User Manual 1178.8520.02 ─ 01

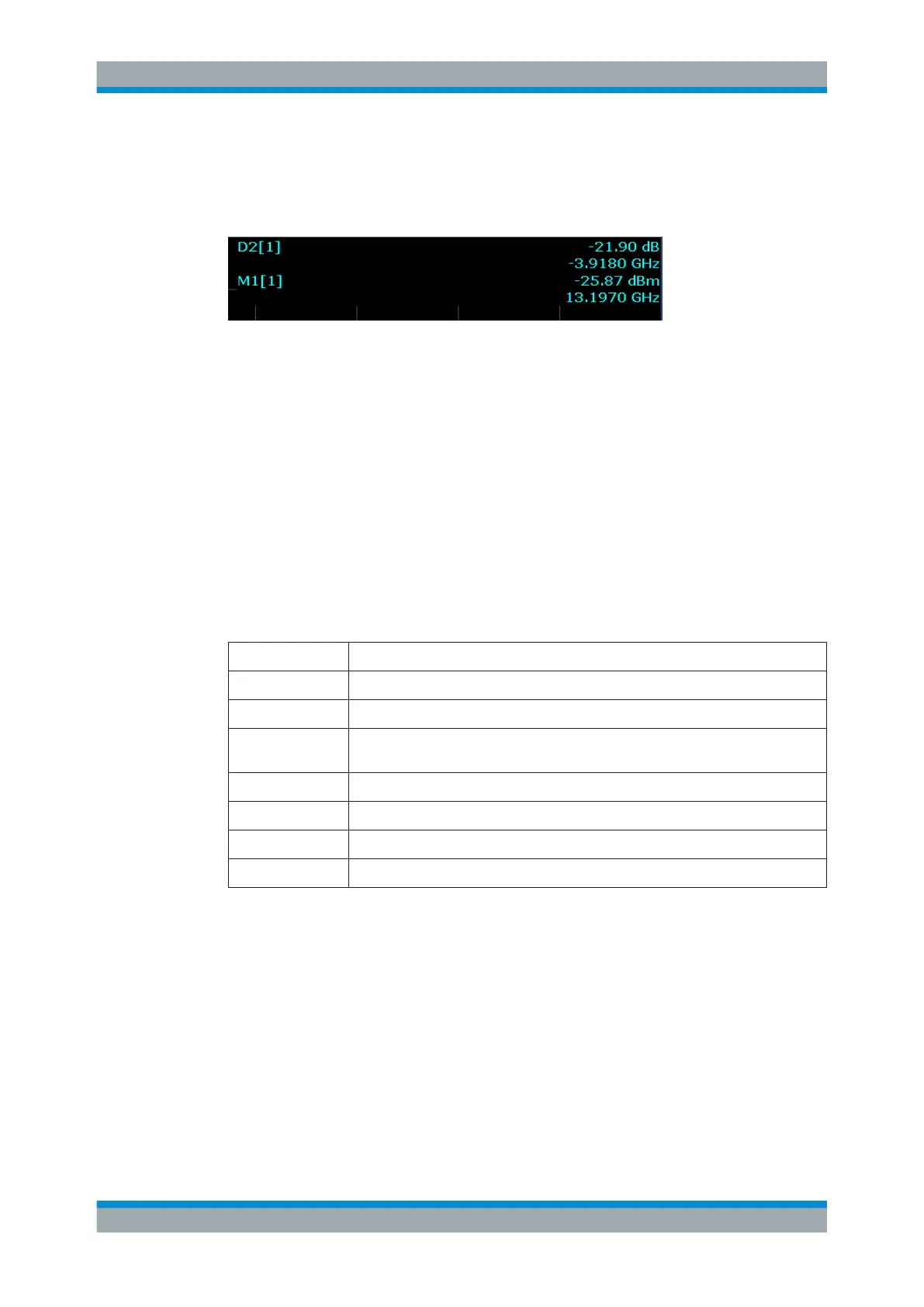

Marker information in diagram area
By default, the results of the last two markers or delta markers that were activated are
displayed in the diagram area.
The following information is displayed there:
●
The marker type (M for normal, D for delta, or special function name)
●
The marker number (1 to 16)
●
The assigned trace number in square brackets [ ]
●
The marker value on the y-axis, or the result of the marker function
●
The marker position on the x-axis
For n dB down markers, additional information is displayed, see Table 9-1.
Marker information in marker table
In addition to the marker information displayed within the diagram area, a separate
marker table may be displayed beneath the diagram. This table provides the following
information for all active markers:
Type Marker type: N (normal), D (delta), T (temporary, internal) and number
Ref Reference marker for delta markers
Trc Trace to which the marker is assigned
Frame Spectrogram frame the marker is positioned in. Displayed only when the Spectro-
gram is displayed.
X-value X-value of the marker
Y-value Y-value of the marker
Function Activated marker or measurement function
Function Result Result of the active marker or measurement function
9.3.2 Marker Settings
Or: [MKR] > "Marker Config"
The remote commands required to define these settings are described in Chap-
ter 14.8.3.1, "Setting Up Individual Markers", on page 982.
● Individual Marker Setup........................................................................................ 430
● General Marker Settings....................................................................................... 433
Marker Usage
