9.3.2.1 Individual Marker Setup
Up to 17 markers or delta markers can be activated for each window simultaneously.

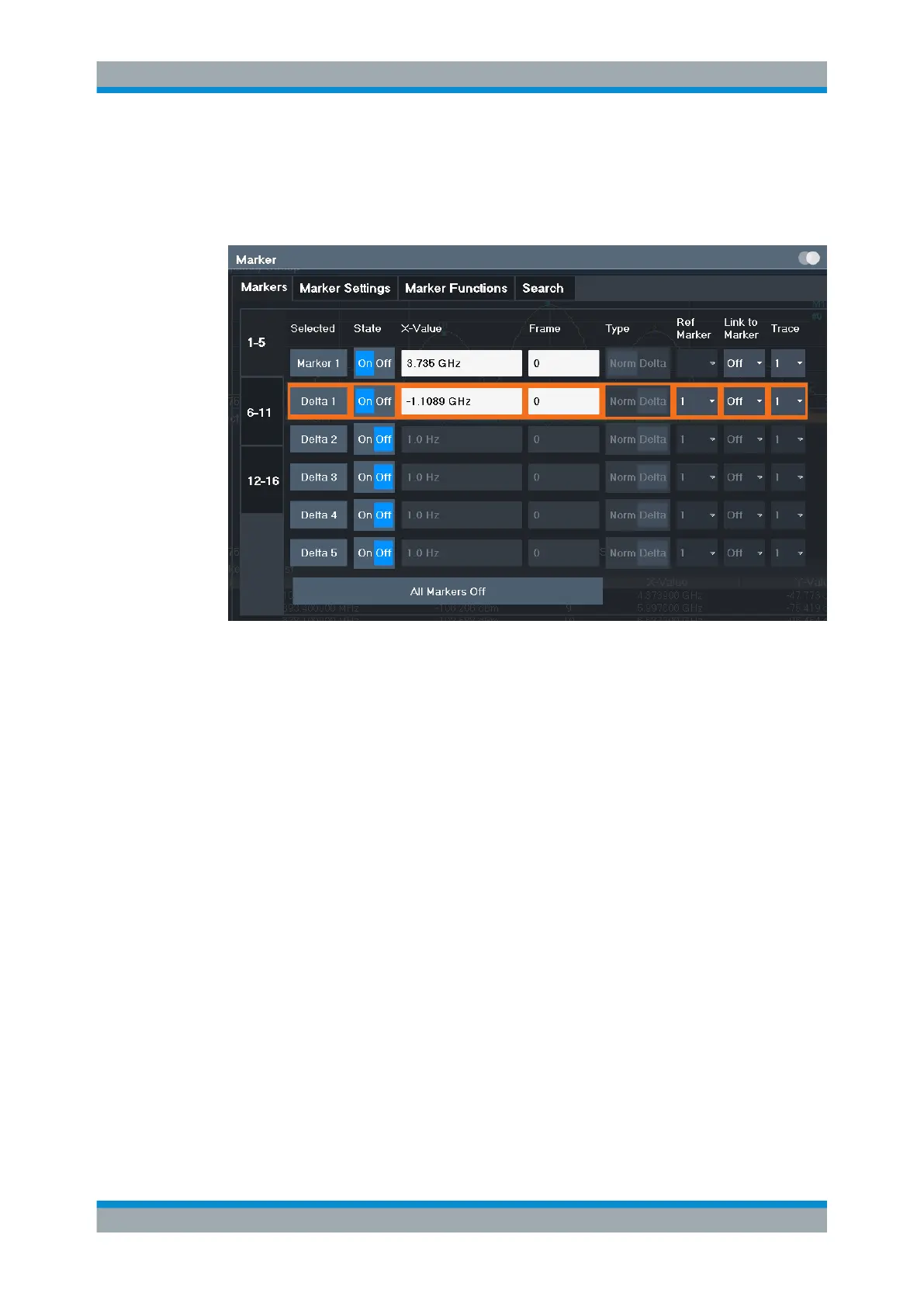

Initial marker setup is performed using the "Marker" dialog box.
The markers are distributed among 3 tabs for a better overview. By default, the first
marker is defined as a normal marker, whereas all others are defined as delta markers
with reference to the first marker. All markers are assigned to trace 1, but only the first
marker is active.
Selected Marker .........................................................................................................430
Marker State ...............................................................................................................430
Marker Position X-value .............................................................................................431
Frame (Spectrogram only).......................................................................................... 431
Marker Type ............................................................................................................... 431
Reference Marker ...................................................................................................... 431
Linking to Another Marker ..........................................................................................431
Assigning the Marker to a Trace ................................................................................ 432
Select Marker .............................................................................................................432
All Marker Off ............................................................................................................. 432
Selected Marker
Marker name. The marker which is currently selected for editing is highlighted orange.
Remote command:
Marker selected via suffix <m> in remote commands.
Marker State
Activates or deactivates the marker in the diagram.
Marker Usage
