Common Measurement Settings
R&S
®
FSVA3000/ R&S
®
FSV3000
382User Manual 1178.8520.02 ─ 01
By default, the data is collected for the specified number of sweeps and the corre-
sponding trace is displayed. When the next sweep is started, the previous trace is
deleted.
However, the data from a single sweep run can also be retained and displayed
together with the new data ( "Continue Single Sweep" mode). This is particularly of
interest when using the trace configurations "Average" or "Max Hold" to take previously
recorded measurements into account for averaging/maximum search (see "Analyzing
Several Traces - Trace Mode" on page 489).
8.5.2 Bandwidth, Filter and Sweep Settings
Access: "Overview" > "Bandwidth"
The remote commands required to define these settings are described in Chap-
ter 14.7.2, "Configuring Bandwidth and Sweep Settings", on page 891.
How to perform a basic sweep measurement is described in Chapter 7.2.2, "How to
Perform a Basic Sweep Measurement", on page 123.

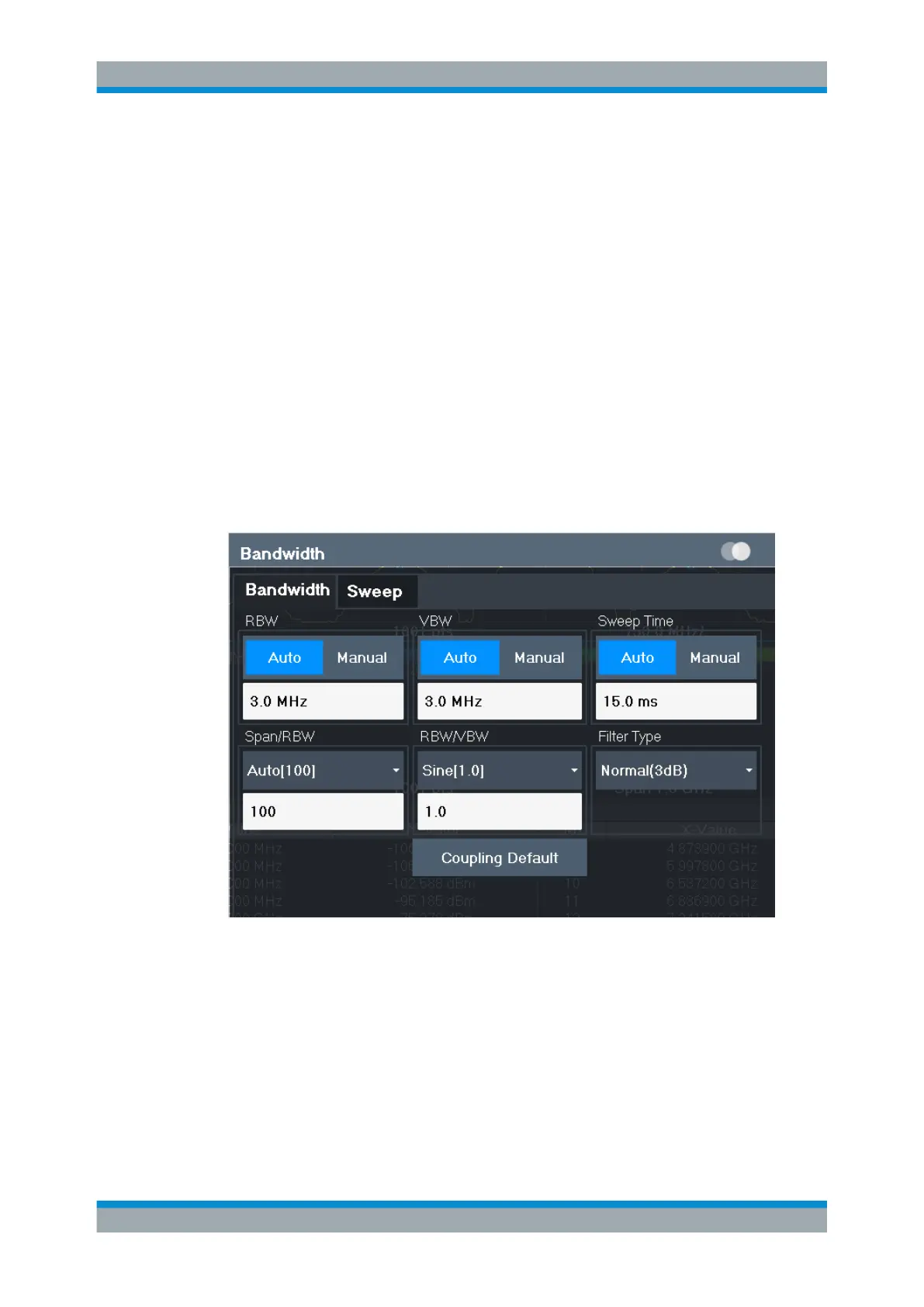

Figure 8-15: Bandwidth dialog box for RF measurements
Bandwidth, Filter and Sweep Configuration
