Common Measurement Settings
R&S
®
FSVA3000/ R&S
®
FSV3000
383User Manual 1178.8520.02 ─ 01

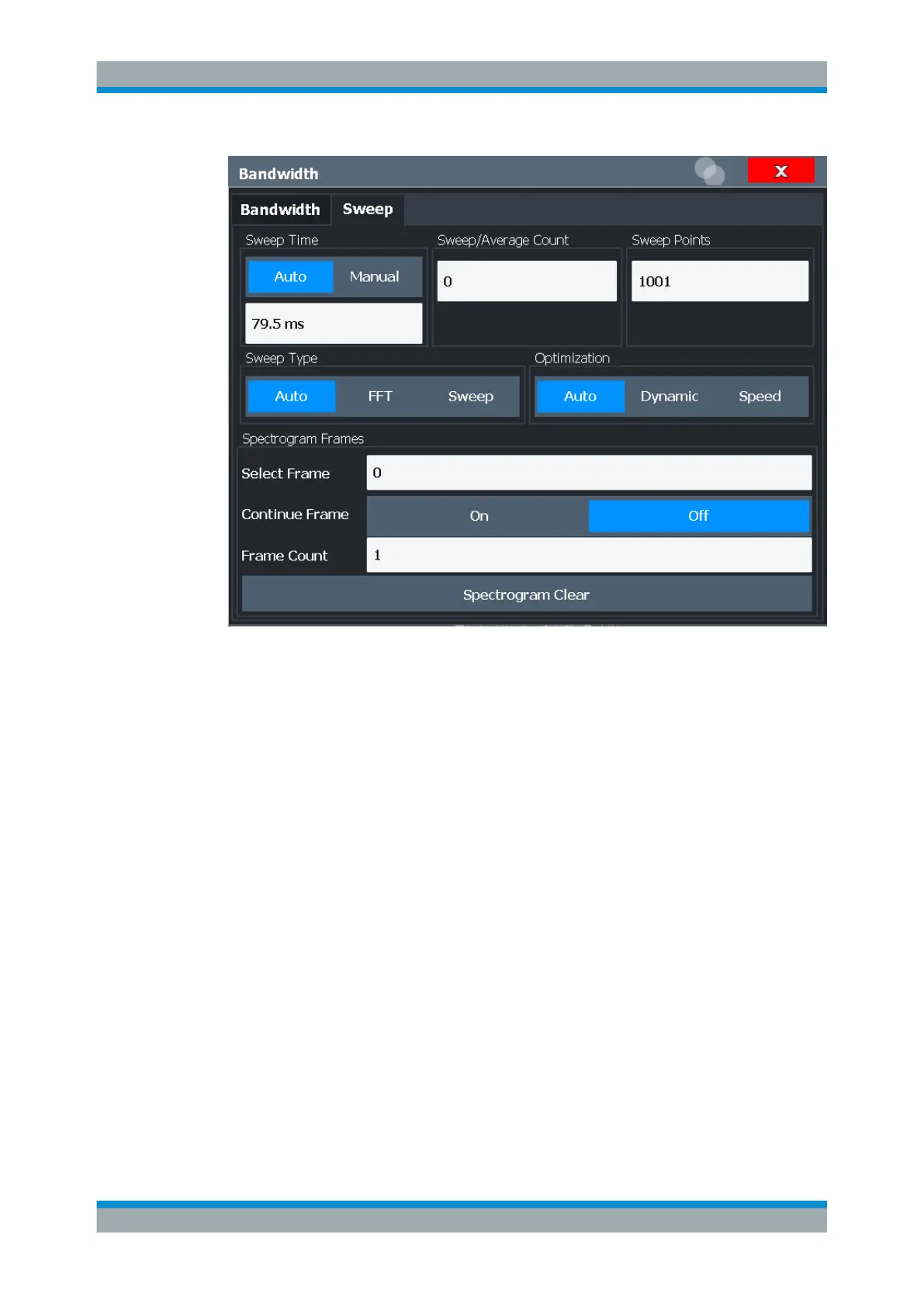

Figure 8-16: Sweep dialog box for spectrogram display
RBW ...........................................................................................................................383
VBW ...........................................................................................................................384
Sweep Time ............................................................................................................... 384
Span/RBW ................................................................................................................. 385
RBW/VBW ..................................................................................................................385
Filter Type .................................................................................................................. 385
Default Coupling .........................................................................................................386
Sweep/Average Count ............................................................................................... 386
Sweep Points.............................................................................................................. 386
Optimization ............................................................................................................... 386
Sweep Type ............................................................................................................... 387
Single Sweep / Run Single .........................................................................................387
Continuous Sweep / Run Cont ...................................................................................388
Continue Single Sweep ..............................................................................................388
Spectrogram Frames ................................................................................................. 388
└ Select Frame.................................................................................................388
└ Continue Frame ........................................................................................... 389
└ Frame Count ................................................................................................389
└ Clear Spectrogram .......................................................................................389
RBW
Defines the resolution bandwidth. The available resolution bandwidths are specified in
the data sheet. Numeric input is always rounded to the nearest possible bandwidth.
Bandwidth, Filter and Sweep Configuration
