"User Defined"
Sends a trigger when you select the "Send Trigger" button.
In this case, further parameters are available for the output signal.
Remote command:
OUTPut<up>:TRIGger<tp>:OTYPe on page 918
Level ← Output Type ← Trigger 1/2
Defines whether a high (1) or low (0) constant signal is sent to the trigger output con-
nector.
The trigger pulse level is always opposite to the constant signal level defined here. For
example, for "Level = High", a constant high signal is output to the connector until you
select the Send Trigger function. Then, a low pulse is provided.
Remote command:
OUTPut<up>:TRIGger<tp>:LEVel on page 917
Pulse Length ← Output Type ← Trigger 1/2
Defines the duration of the pulse (pulse width) sent as a trigger to the output connector.
Remote command:
OUTPut:TRIGger<tp>:PULSe:LENGth on page 918
Send Trigger ← Output Type ← Trigger 1/2
Sends a user-defined trigger to the output connector immediately.

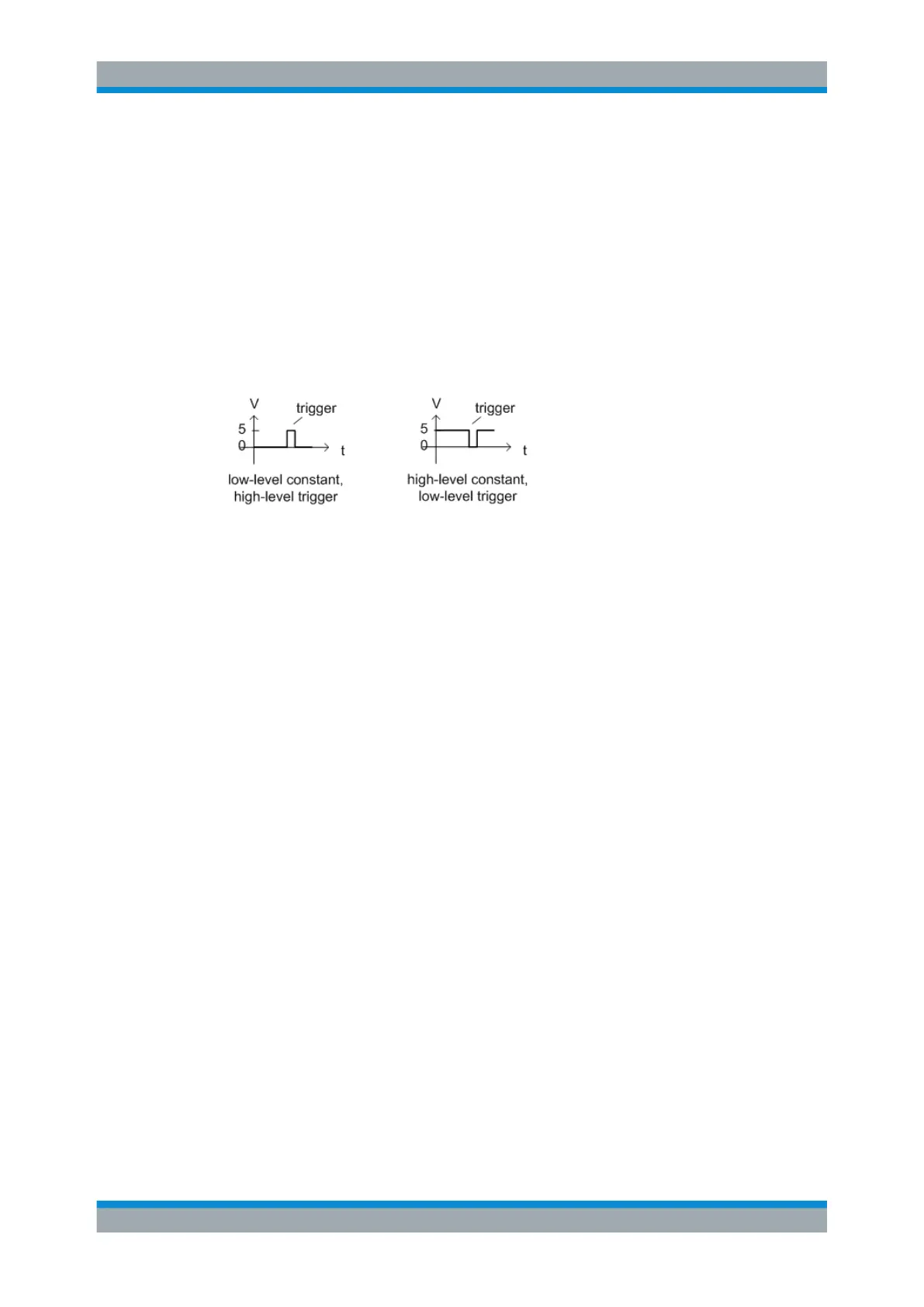

Note that the trigger pulse level is always opposite to the constant signal level defined
by the output Level setting. For example, for "Level" = "High", a constant high signal is
output to the connector until you select the "Send Trigger" function. Then, a low pulse
is sent.
Which pulse level will be sent is indicated by a graphic on the button.
Remote command:
OUTPut:TRIGger<tp>:PULSe:IMMediate on page 918
8.2.9 How to Output a Trigger Signal
Using the variable Trigger 1/2 connector of the R&S FSV/A, the internal trigger signal
can be output for use by other connected devices. For details on the connectors see
the R&S FSV/A "Getting Started" manual.
To output a trigger to a connected device
1. Select [Trigger] > "Trigger Config".
2. Switch to the "Trigger In/Out" tab of the "Trigger and Gate".
