7.8.5 APD and CCDF Configuration
Auto measurement
Use the Auto All function to determine the required measurement parameters automat-
ically.
The following settings are determined:
●
Center frequency
●
Analysis bandwidth: determined signal bandwidth * 2
●
Number of samples
●
Reference level
●
No gating
See also Chapter 7.1, "Auto Measurements", on page 121.
Configuration consists of the following settings:
●
Make sure the specified reference level is higher than the measured peak value
(see " Reference Level " on page 370).
● Basic Settings....................................................................................................... 269
● Gate Range Definition for APD and CCDF........................................................... 271
● Scaling for Statistics Diagrams............................................................................. 272
7.8.5.1 Basic Settings

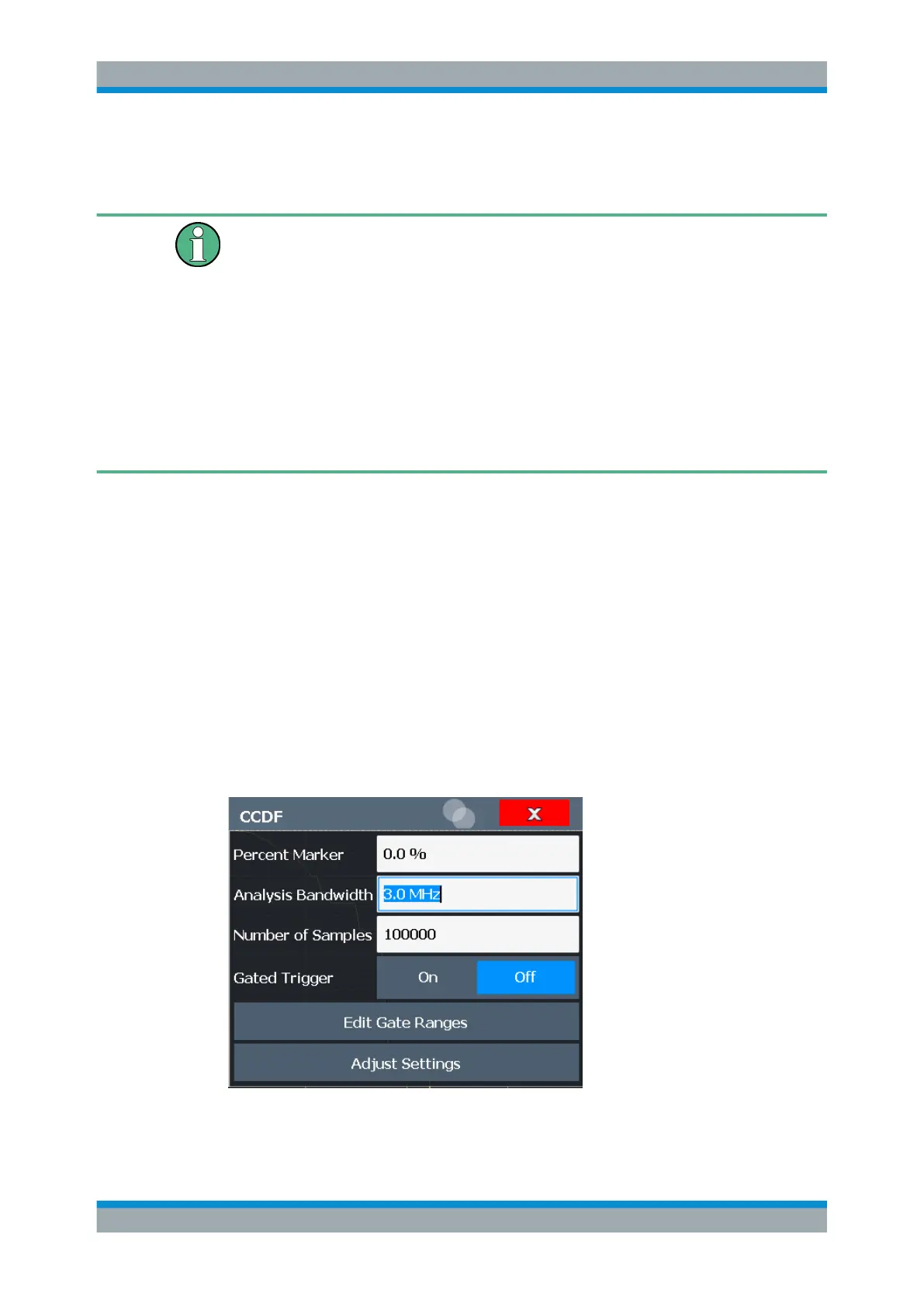

Access: "Overview" > "Select Measurement" > "APD" / "CCDF" > "APD Config" /
"CCDF Config"
The remote commands required to perform these tasks are described in Chap-
ter 14.5.8, "Analyzing Statistics (APD, CCDF)", on page 838.
