Measurements and Results
R&S
®
FSVA3000/ R&S
®
FSV3000
271User Manual 1178.8520.02 ─ 01
Edit Gate Ranges
Opens a dialog box to configure up to 3 gate ranges for each trace. For details see
Chapter 7.8.5.2, "Gate Range Definition for APD and CCDF", on page 271.
Adjust Settings
Adjusts the level settings according to the measured difference between peak and min-
imum power for APD measurement or peak and mean power for CCDF measurement
in order to obtain maximum power resolution. Adjusts the reference level to the current
input signal.
Remote command:
CALCulate<n>:STATistics:SCALe:AUTO ONCE on page 843

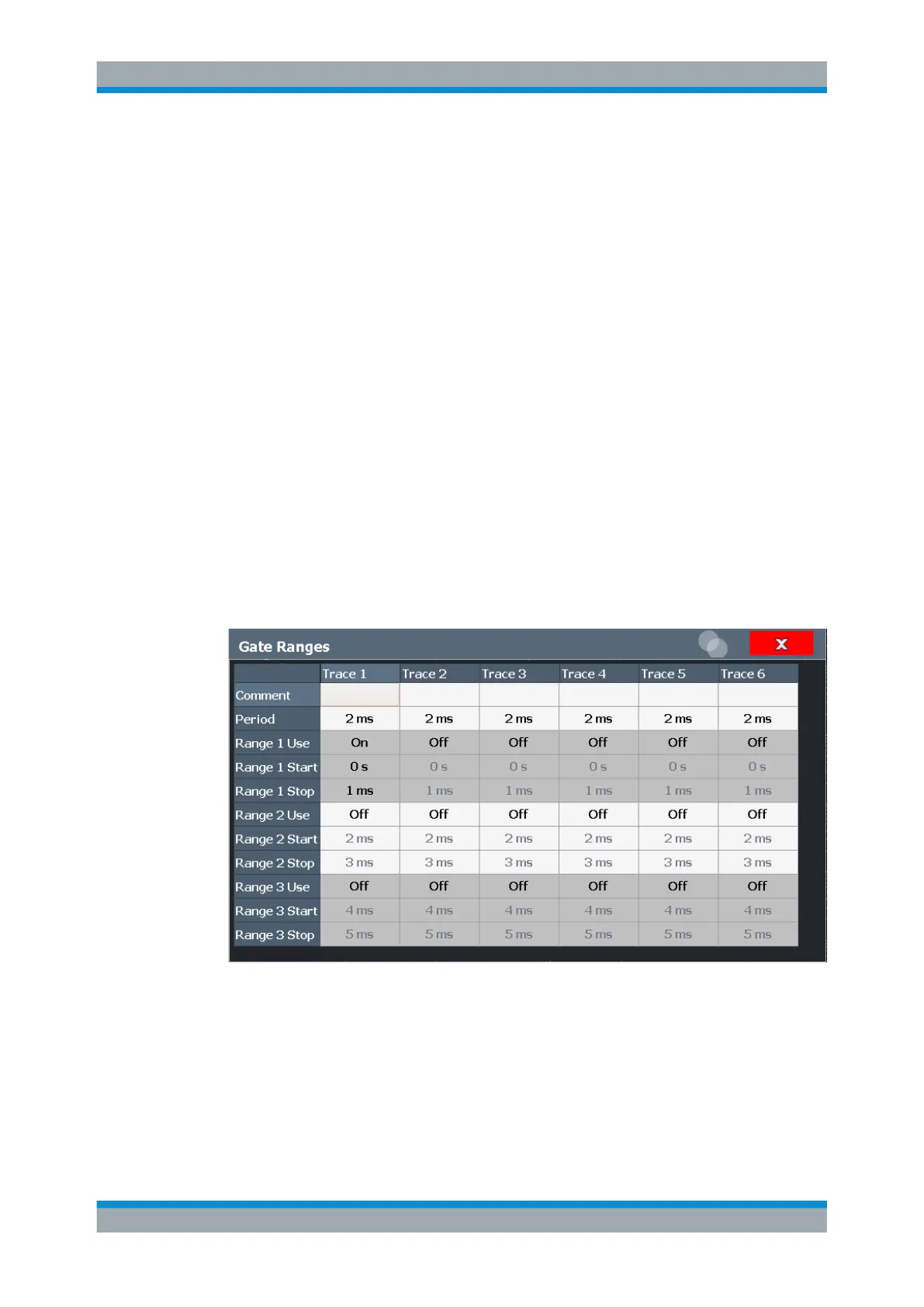

7.8.5.2 Gate Range Definition for APD and CCDF
Access: "Overview" > "Select Measurement" > "APD" / "CCDF" > "APD Config" /
"CCDF Config" > "Edit Gate Ranges"
You can configure gate ranges for gated triggering in statistical measurements.
For background information on defining gate ranges see Chapter 7.8.4, "APD and
CCDF Basics - Gated Triggering", on page 267.
The remote commands required to perform these tasks are described in Chap-
ter 14.5.8.3, "Using Gate Ranges for Statistical Measurements", on page 840.
Up to three ranges can be defined for each of the six available traces.
Comment ....................................................................................................................271
Period .........................................................................................................................272
Range <x> Use .......................................................................................................... 272
Range <x> Start/Stop .................................................................................................272
Comment
An optional comment can be defined for the gate range settings of each trace.
Statistical Measurements (APD, CCDF)
