Measurements and Results
R&S
®
FSVA3000/ R&S
®
FSV3000
209User Manual 1178.8520.02 ─ 01

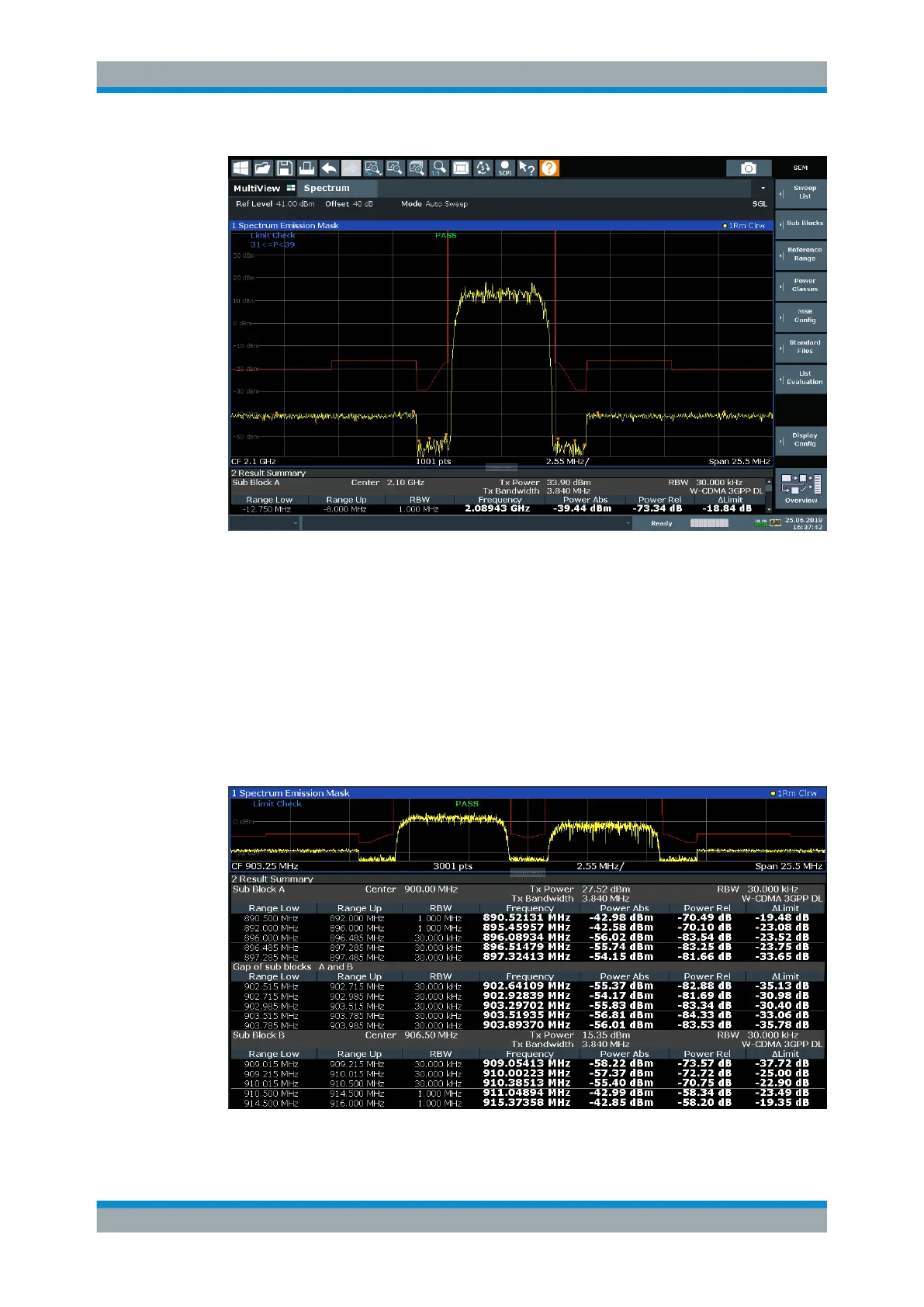

Figure 7-35: Detected peak display in SEM measurement
Furthermore, you can export the results of the result summary to a file which can be
exported to another application for further analysis.
Results for SEM with multiple sub blocks
In the Spectrum application only, spectrum emissions can be measured for multiple
sub blocks of channels (see Chapter 7.6.4.5, "SEM with Multiple Sub Blocks ("Multi-
SEM")", on page 216 for details). Up to three sub blocks (with two gaps) can be
defined. For each sub block and each gap, the results described above are provided
individually in the result summary.
Figure 7-36: SEM results for multiple sub blocks
Spectrum Emission Mask (SEM) Measurement
