Rackmounting
The R&S FSV/A can be installed in a rack using a rack adapter kit (order no. see data
sheet). The installation instructions are part of the adapter kit.
Risk of instrument damage due to insufficient airflow in a rack
If you mount several instruments in a rack, you need an efficient ventilation concept to
ensure that the instruments do not overheat. Insufficient airflow for a longer period can
disturb the operation and even cause damage.

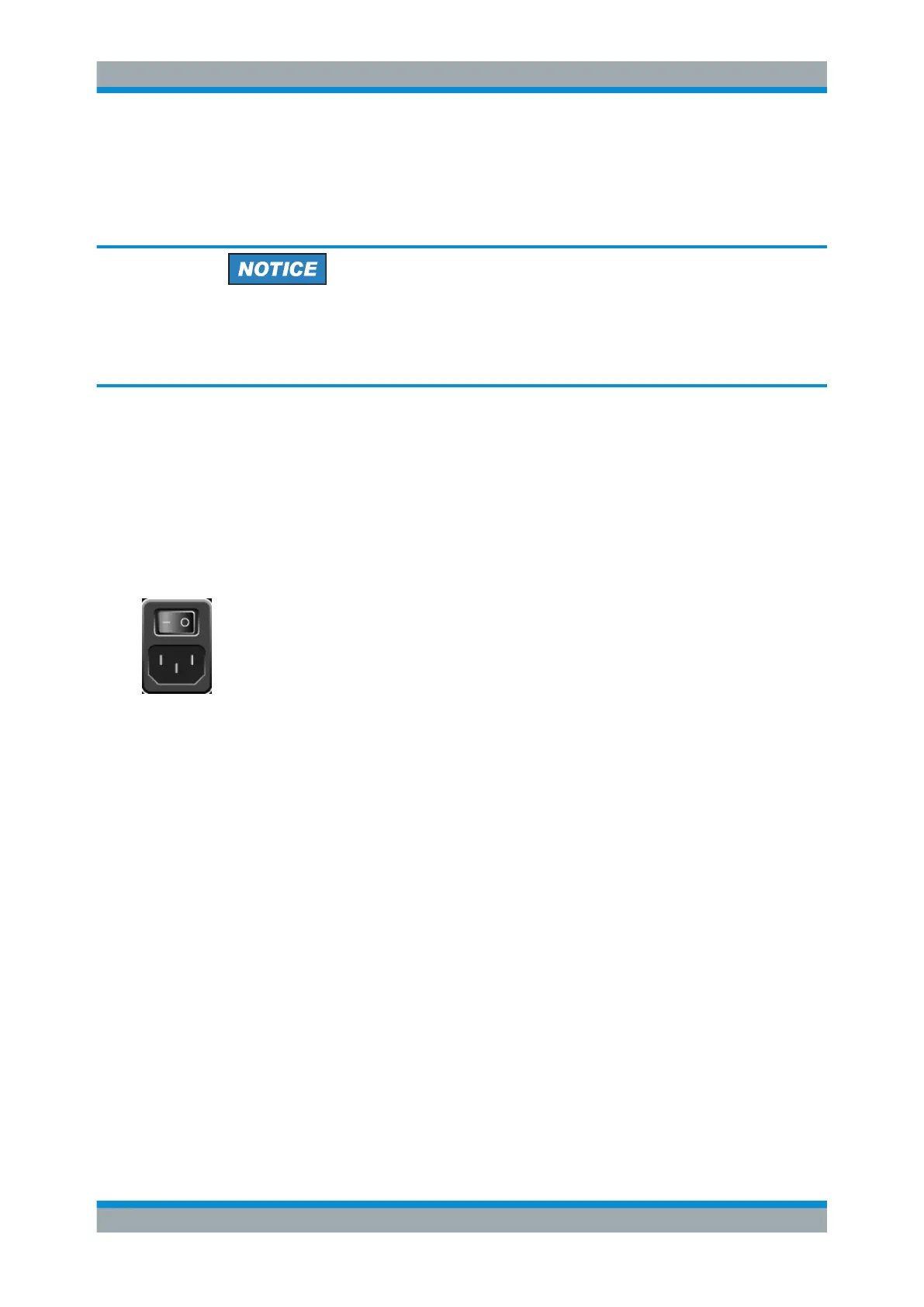

5.1.1.4 Connecting the AC Power
In the standard version, the R&S FSV/A is equipped with an AC power supply connec-
tor. The R&S FSV/A can be used with different AC power voltages and adapts itself
automatically to it. Refer to the datasheet for the requirements of voltage and fre-
quency. The AC power connector is located on the rear panel of the instrument.
For details on the connector, refer to Chapter 5.2.2.1, "AC Power Supply Connection
and Main Power Switch", on page 54.
► Connect the R&S FSV/A to the AC power supply using the supplied power cable.
Since the instrument complies with the specifications for safety class EN61010,
only connect it to an outlet that has a ground contact.
5.1.1.5 Switching the Instrument On and Off
Switching on the instrument
► Press the AC power switch on the rear panel to position "I".
The instrument is supplied with AC power. After booting, the instrument is ready for
operation. The [POWER] key lights up green.
If the [POWER] key lights up orange, the instrument is in standby mode.
Switching off the instrument
1. Press the [POWER] key on the front panel.
The R&S FSV/A switches to standby mode.
2. Set the AC power switch on the rear panel to position "O", or disconnect the instru-
ment from the AC power supply.
The R&S FSV/A changes into off mode.
Preparing for Use
