Common Measurement Settings
R&S
®
FSVA3000/ R&S
®
FSV3000
405User Manual 1178.8520.02 ─ 01
the individual gates. In this case, the trigger source defines when measurement is gen-
erally possible, and the gate source determines which data is actually measured.
Example:
A rotating antenna can be used as a general (external) trigger source, for example.
Only when the antenna reaches a specified position, measurement is possible. A sec-
ond external trigger can then be used to control the gating periods to measure a burs-
ted signal.
1
RF Signal
Ext. Trigger1
...
...
Frame trigger
(Ext. Trigger2)
Measured
Gates
...
...
1 2 3 4 5 6 7 8
2 3 4 5 6

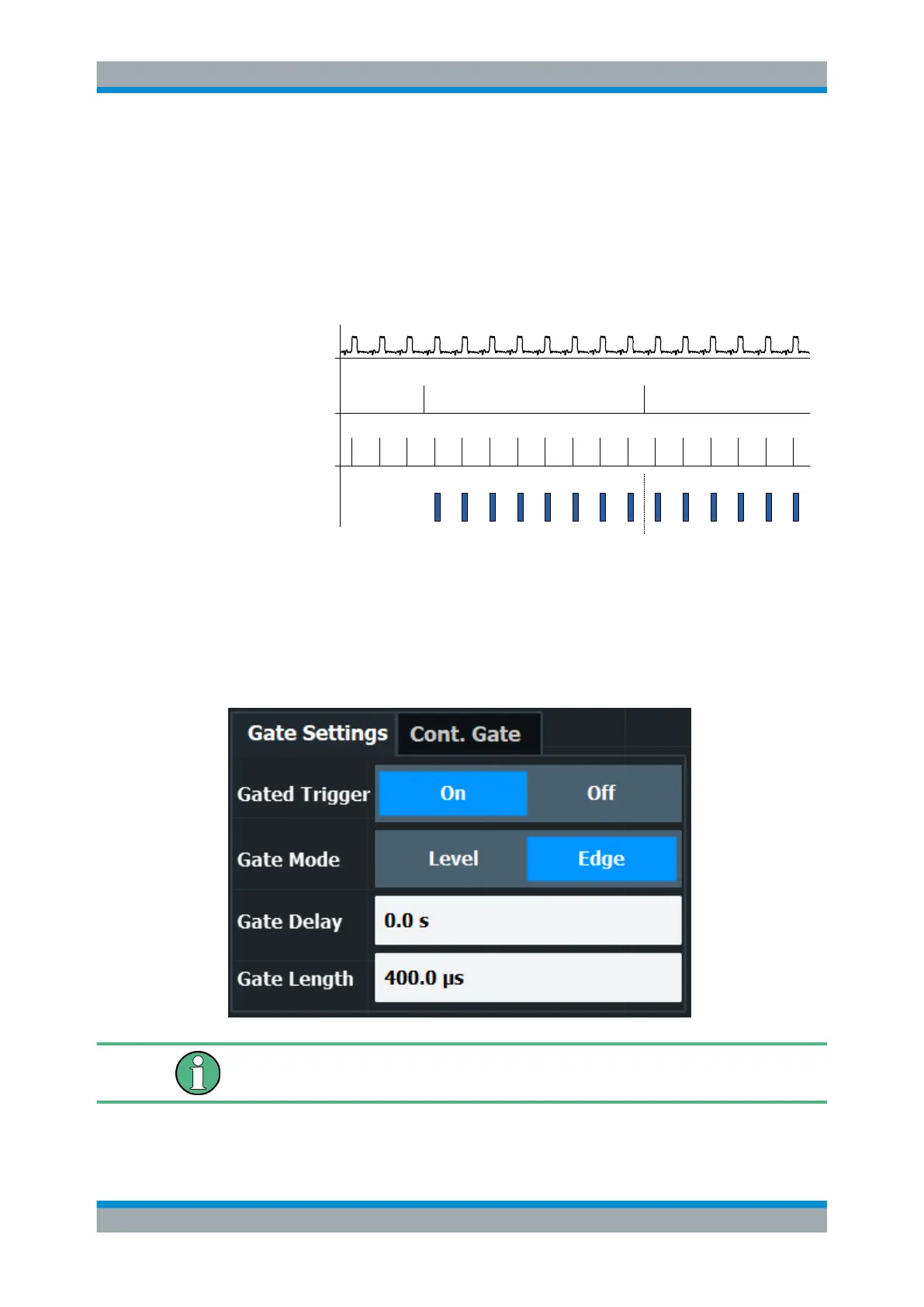

Figure 8-23: Triggered gated measurement
8.6.2.2
Gate Settings
Access: "Overview" > "Trigger" > "Trigger / Gate Config." > "Gate Settings"
Gate settings define one or more extracts of the signal to be measured.
Gating is not available for measurements on I/Q-based data.
Trigger and Gate Configuration
