R&S FSV3000 Series - Page 612

General Instrument Setup
R&S
®
FSVA3000/ R&S
®
FSV3000
612User Manual 1178.8520.02 ─ 01

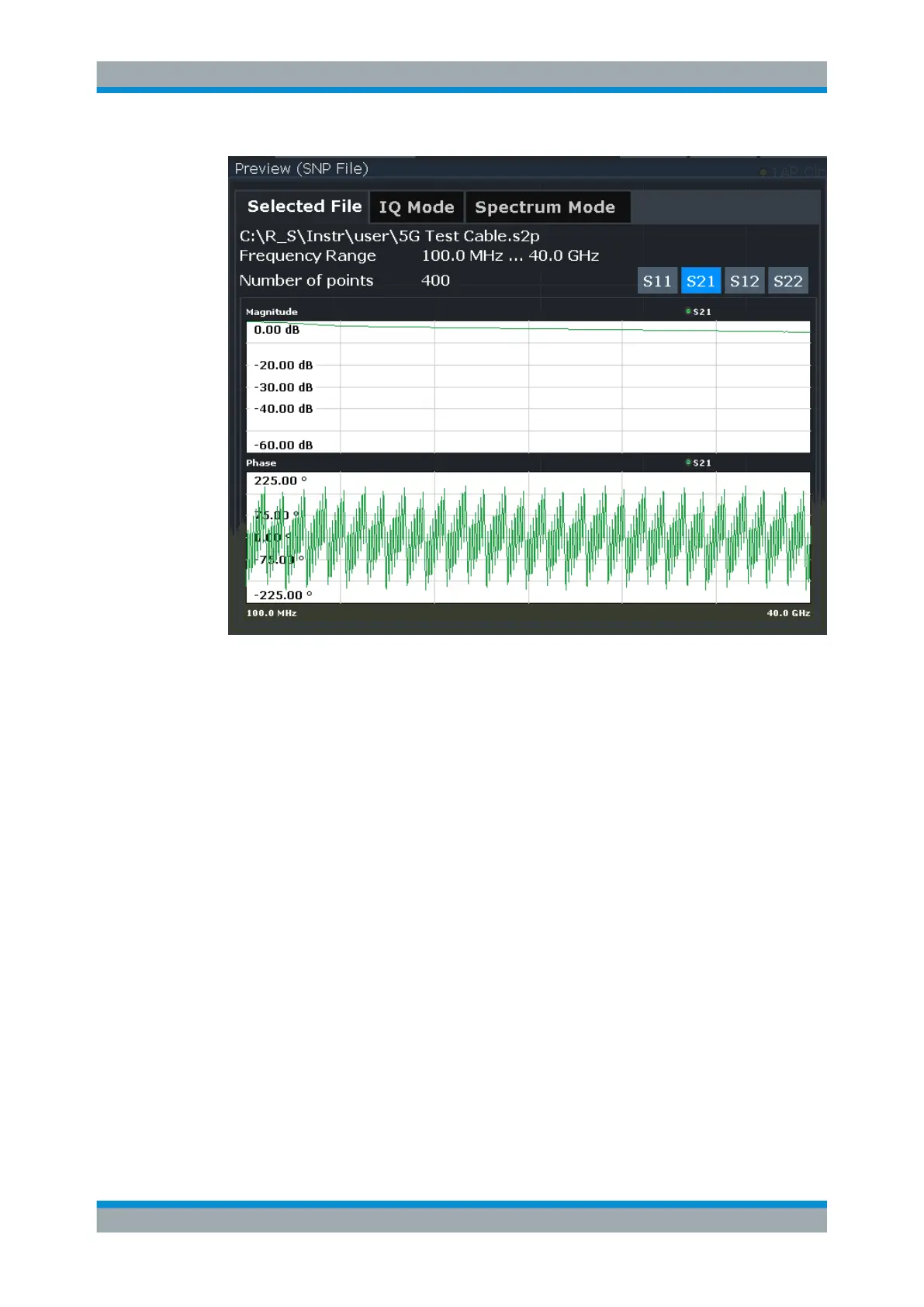

Figure 12-1: Preview of selected user correction file
Remote command:
[SENSe:]CORRection:FRESponse:USER:FLISt<fli>:DATA:FREQuency?
on page 1104
[SENSe:]CORRection:FRESponse:USER:FLISt<fli>:DATA:MAGNitude?
on page 1104
[SENSe:]CORRection:FRESponse:USER:FLISt<fli>:DATA:PHASe?
on page 1104
[SENSe:]CORRection:FRESponse:USER:SLISt<sli>:DATA:
FREQuency<spi>? on page 1109
[SENSe:]CORRection:FRESponse:USER:SLISt<sli>:DATA:
MAGNitude<spi>? on page 1109
[SENSe:]CORRection:FRESponse:USER:SLISt<sli>:DATA:PHASe<spi>?
on page 1109
IQ Mode ← Preview
The preview in IQ Mode indicates the frequency ranges covered by the individual cor-
rection files. The blue bar indicates the valid frequency range for which all files contain
values.
An LED-like symbol indicates whether each file is active and user correction in general
is switched on (symbol "lights up") or not (symbol is dark). A purple symbol represents
a Touchstone file. A green symbol represents a frequency response (.fres) file.
The lower part shows the combined correction values for the valid frequency range.
Frequency Response Correction (R&S
FSV/A-K544)
