R&S SMB100A User Manual

Remote Control Basics
R&S
®
SMB100A
249Operating Manual 1407.0806.32 ─ 21

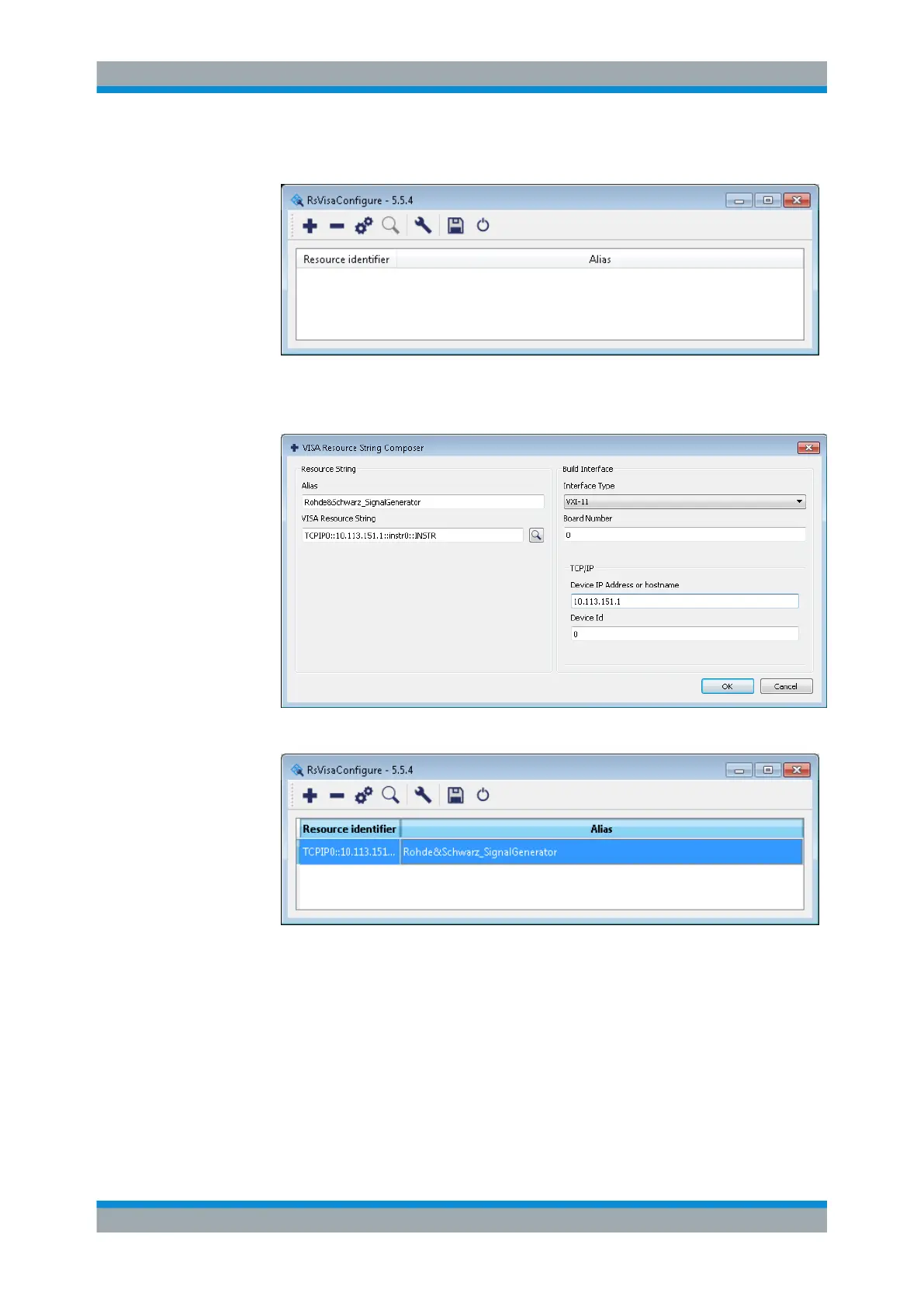

a) In the menu bar, select "RsVisaConfig".
b) In the toolbar, select "+" to access the "VISA Rexource String Composer".
c) Fill in the "Alias" name, the "VISA Resource String" and the "Device IP Address
or host name" as shown in the figure, and confirm with "OK".
The "Alias" name is assigned to the instrument.
d) Close the dialog.
The R&S SMB is now registered in the program and can be addressed via the
resource string or alias name.
9. In the main window, select "Connect".
R&S VISA establishes the connection to the R&S SMB.
Now you can send settings to configure the instrument and receive its responses.
Starting a Remote Control Session
