R&S SMB100A User Manual

Getting Started
R&S
®
SMB100A
61Operating Manual 1407.0806.32 ─ 21

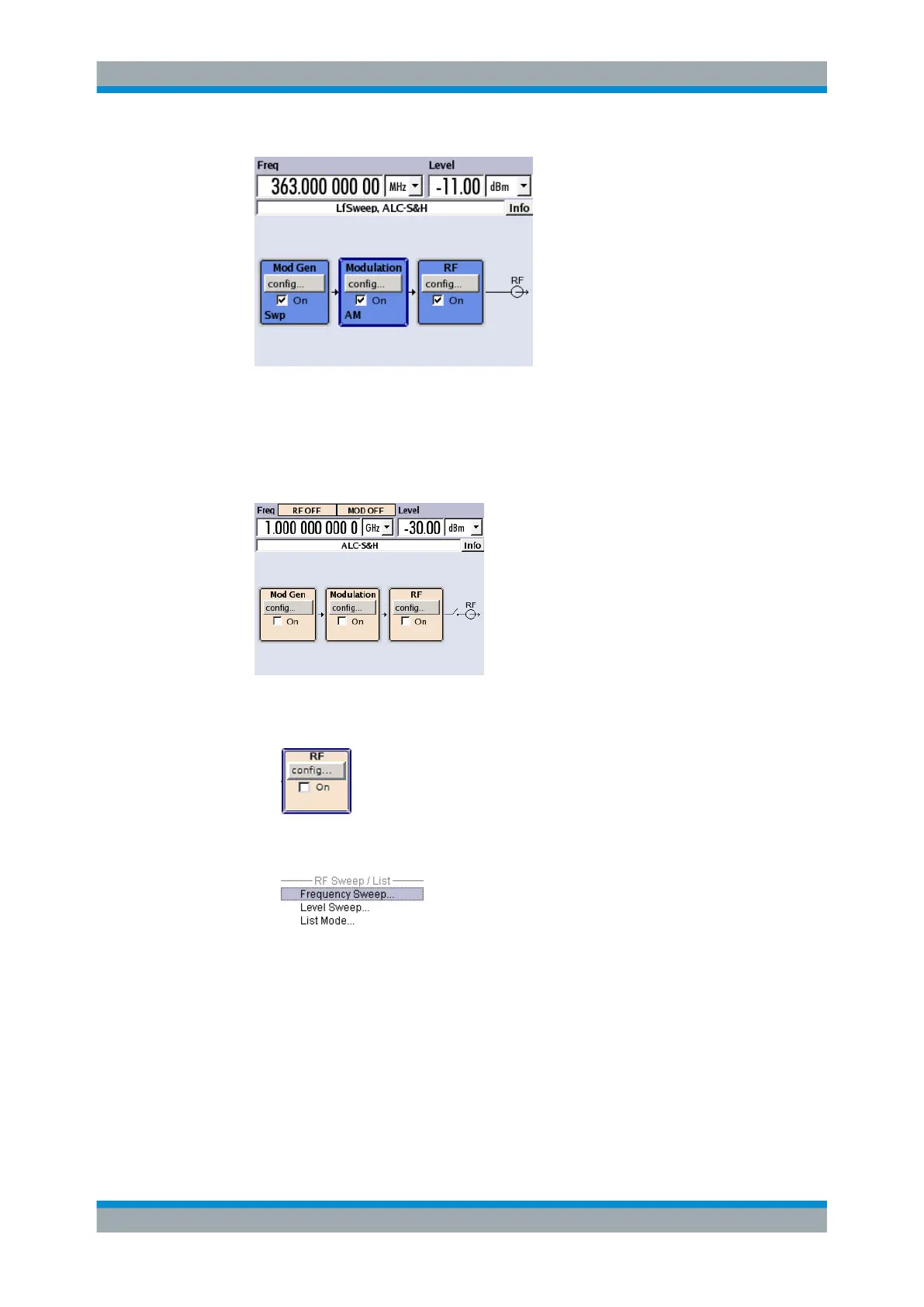

Generation of an RF Frequency Sweep Signal
In the example, an RF frequency sweep is configured. Proceed as follow:
1. Activate default (preset) state
Press the PRESET key to set a defined instrument state.
2. Configure and activate RF frequency sweep.
a) Turn the rotary knob and select the "RF" block.
b) Press the rotary knob to open the dialog where the RF frequency sweep can be
selected.
Example of Setup
