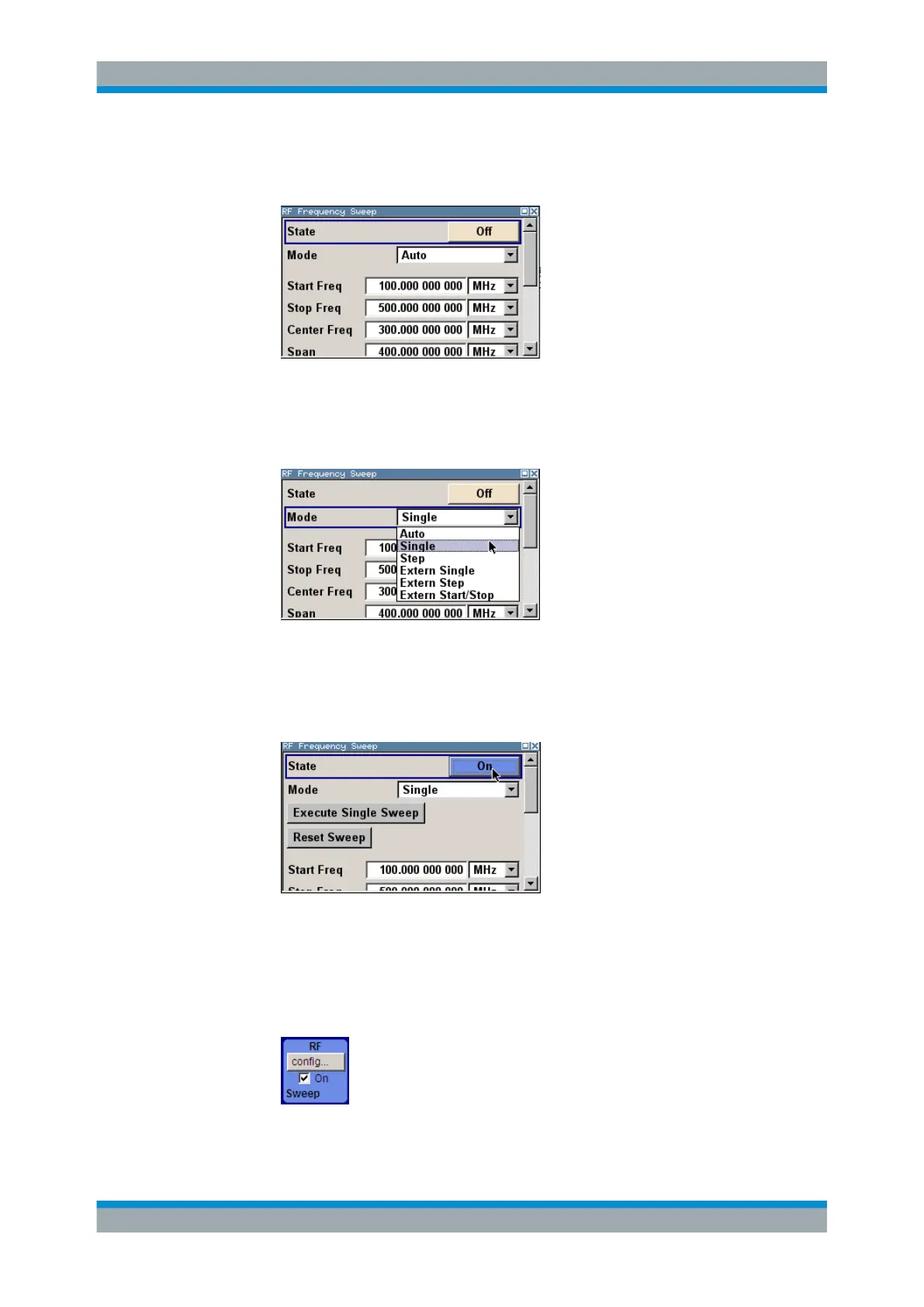

c) Turn the rotary knob and highlight "RF Frequency Sweep...".
Press the rotary knob to open the "RF Frequency Sweep" dialog.
All sweep parameters are default except for the sweep mode. The default set-
tings are not changed.
d) Turn the rotary knob to select parameter "Mode", press the rotary knob to open
the selection list and select "Single".
e) Press the rotary knob to apply the selection.
For triggering, the "Execute Single Sweep" and "Reset Sweep" buttons are dis-
played.
f) Finally, select "State" and press the rotary knob to switch on the RF frequency
sweep.
g) Press the DIAGRAM key to display the complete block diagram.
The "RF" is not yet active, which means that no RF signal is output.
3. Activate RF signal.
a) Turn the rotary knob to select the "RF" block.
b) Press the RF ON/OFF key to activate the "RF" signal output.
Example of Setup
