SPDF DF3080

SM 2-59 D146/D147/D148/D149/D150

Installation

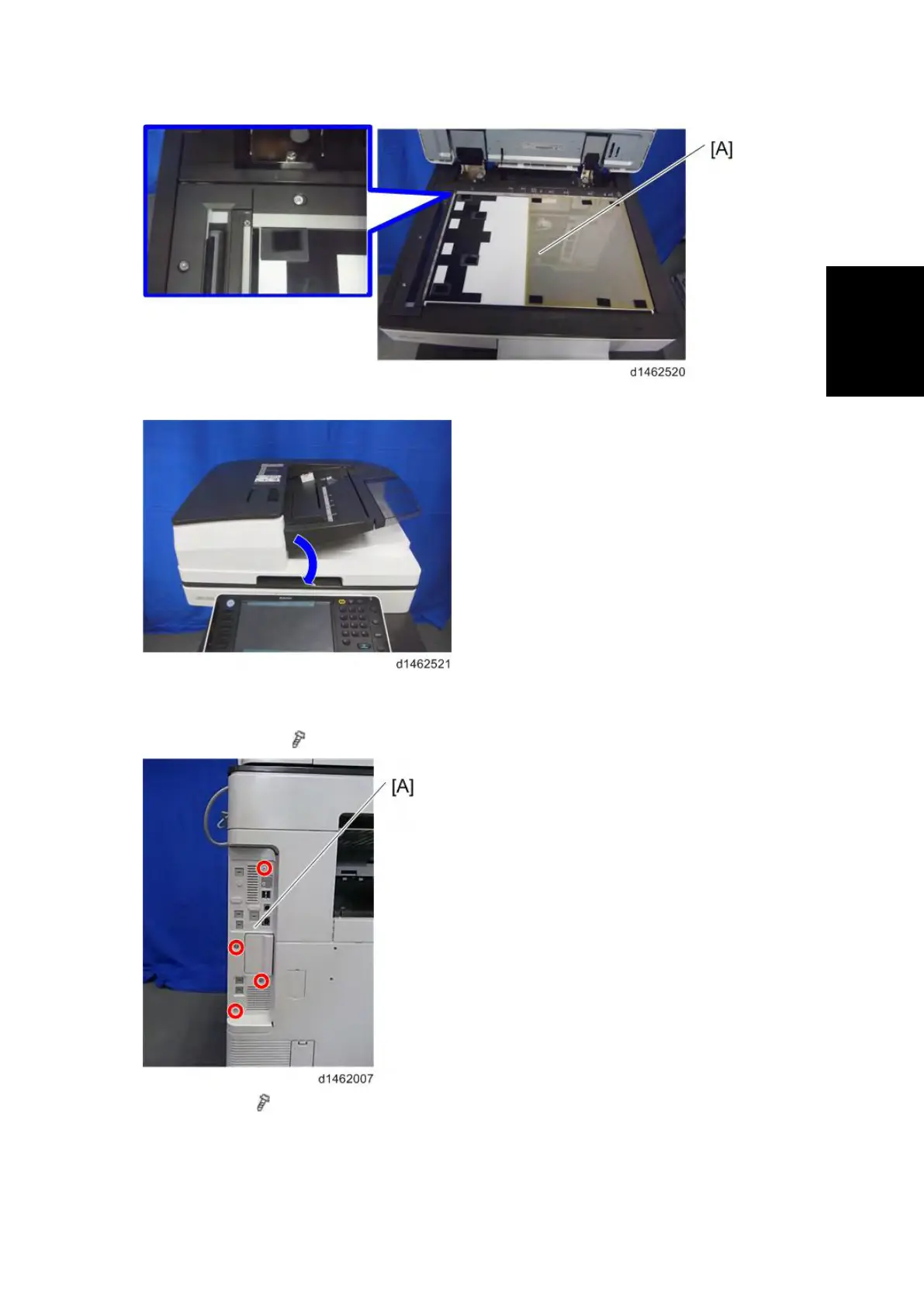

9. Close the SPDF slowly, and attach the platen sheet and SPDF.

Attaching the Sub IPU / Replacing the BCU

1. Controller cover [A] ( ×4)

1. Rear cover [A] ( ×4)
