Shift tray upper limit switch

SM 21 D686/D687

BOOKLET FINISHER

SR3150 / FINISHER

SR3140

(D686/D687)

1.10 SHIFT TRAY UPPER LIMIT SWITCH

1. Shift tray upper limit switch unit ( page 19 "Shift tray paper surface sensor")

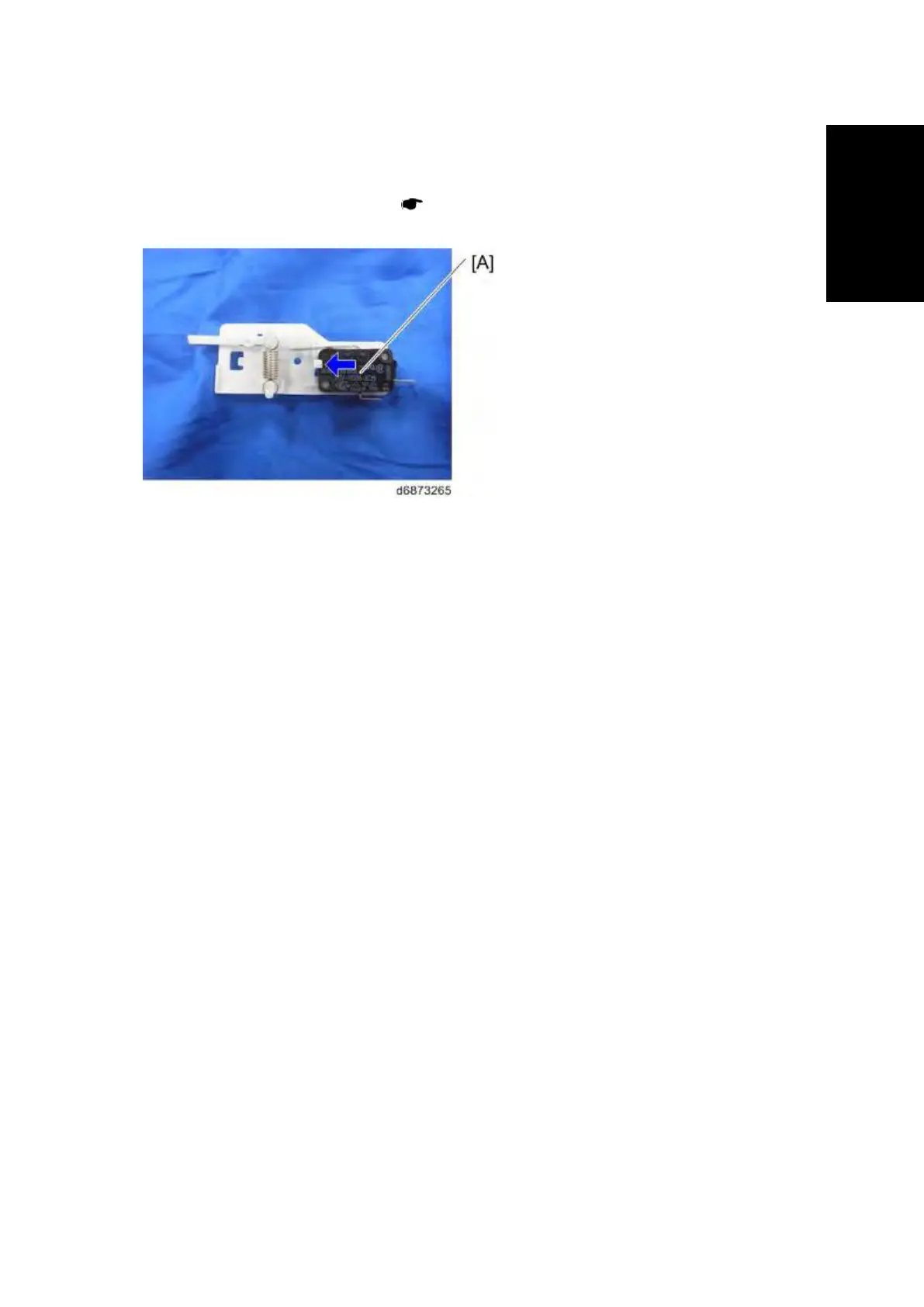

2. Shift tray upper limit switch [A]
