Image Transfer Unit

D146/D147/D148/D149/D150 4-80 SM

4.10.8 TEMPERATURE AND HUMIDITY SENSOR

1. PCDUs (page 4-58 "PCDU")

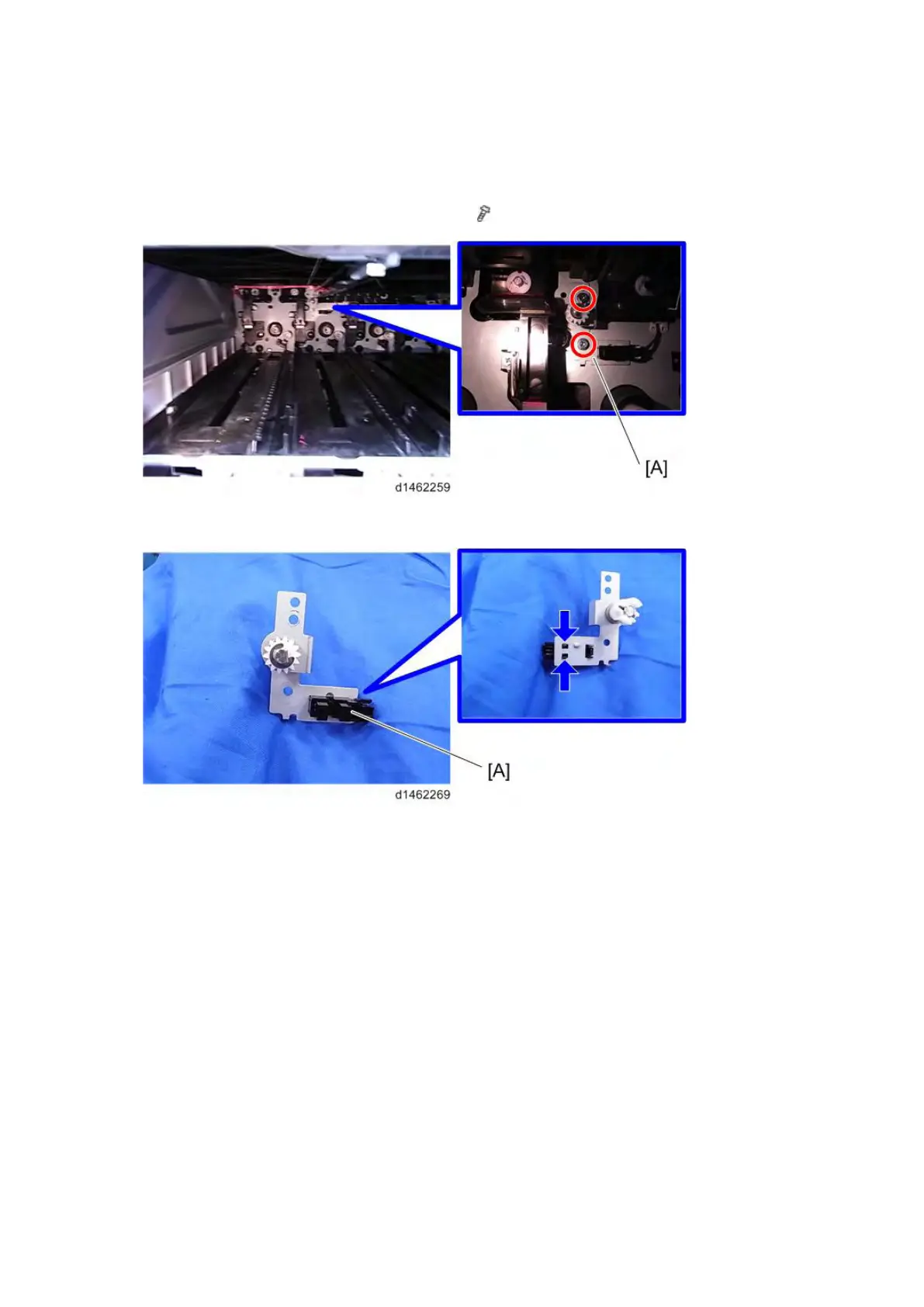

2. Temperature and humidity sensor bracket [A] ( ×2)

3. Temperature and humidity sensor [A]
