Center-folding paper eject sensor

D686/D687 28 SM

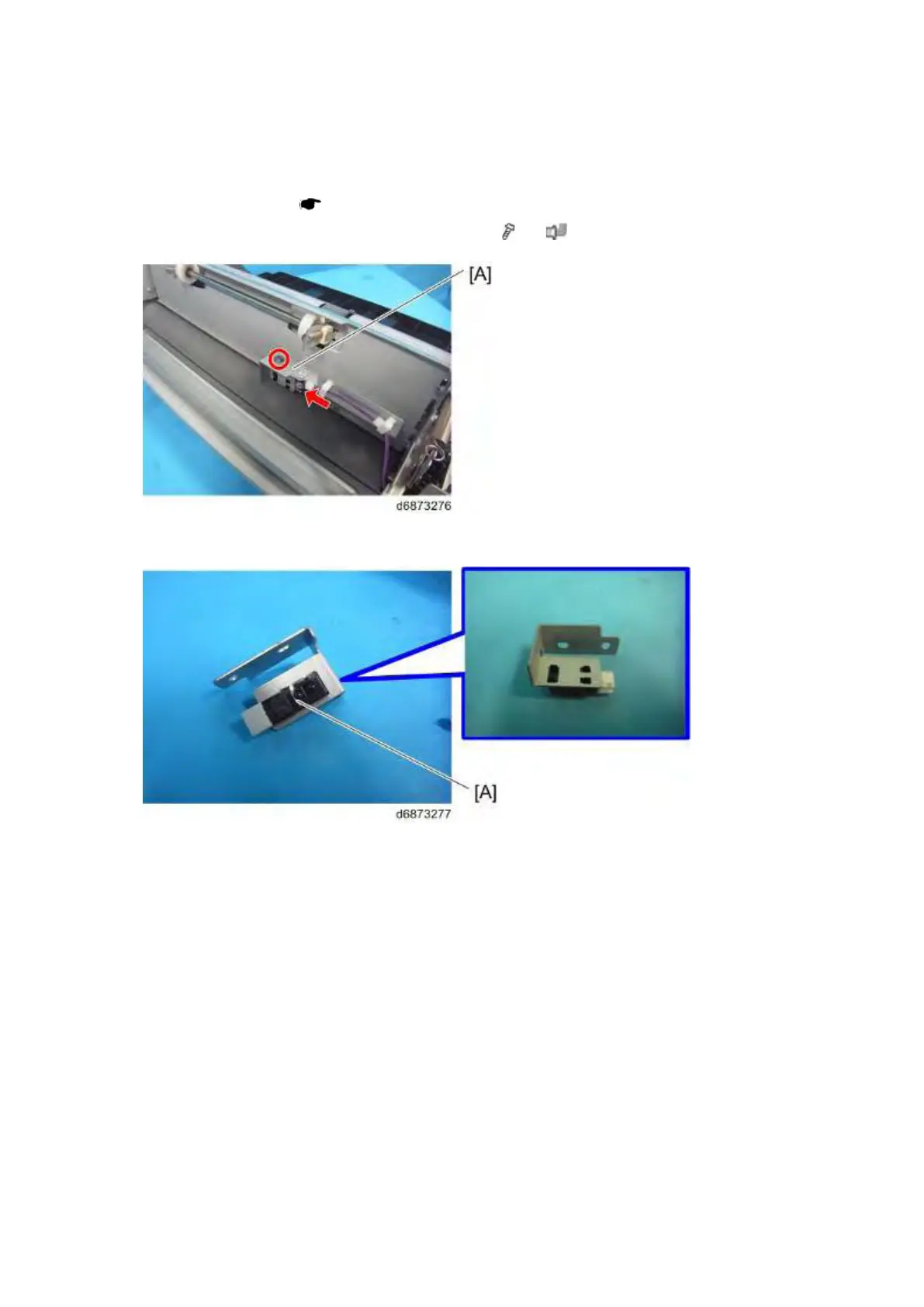

1.14 CENTER-FOLDING PAPER EJECT SENSOR

1. Center-folding unit ( page 25)

2. Center-folding paper eject sensor bracket [A] (

×1, ×1)

3. Center-folding paper eject sensor [A]
