ADF Removal

SM 1 D683

SPDF DF3080

(D683)

1. REPLACEMENT AND ADJUSTMENT

1.1 ADF REMOVAL

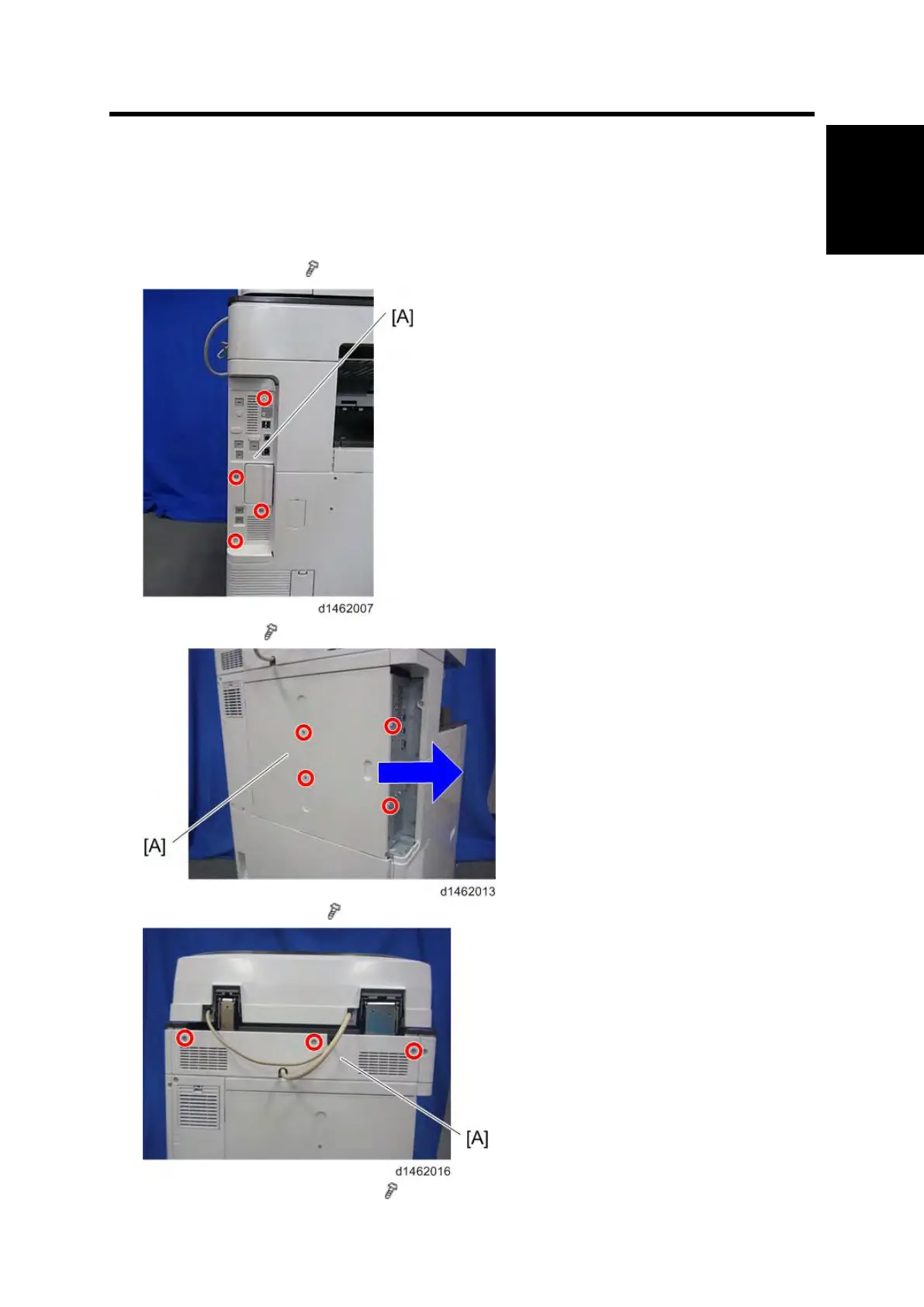

1. Controller cover [A] ( ×4)

2. Rear cover [A] (

×4)

3. Scanner rear cover [A] ( ×3)

4. Scanner rear cover (small) [A] ( ×2)
