Duplex Unit
SM 4-137 D146/D147/D148/D149/D150
Replacement
and Adjustment

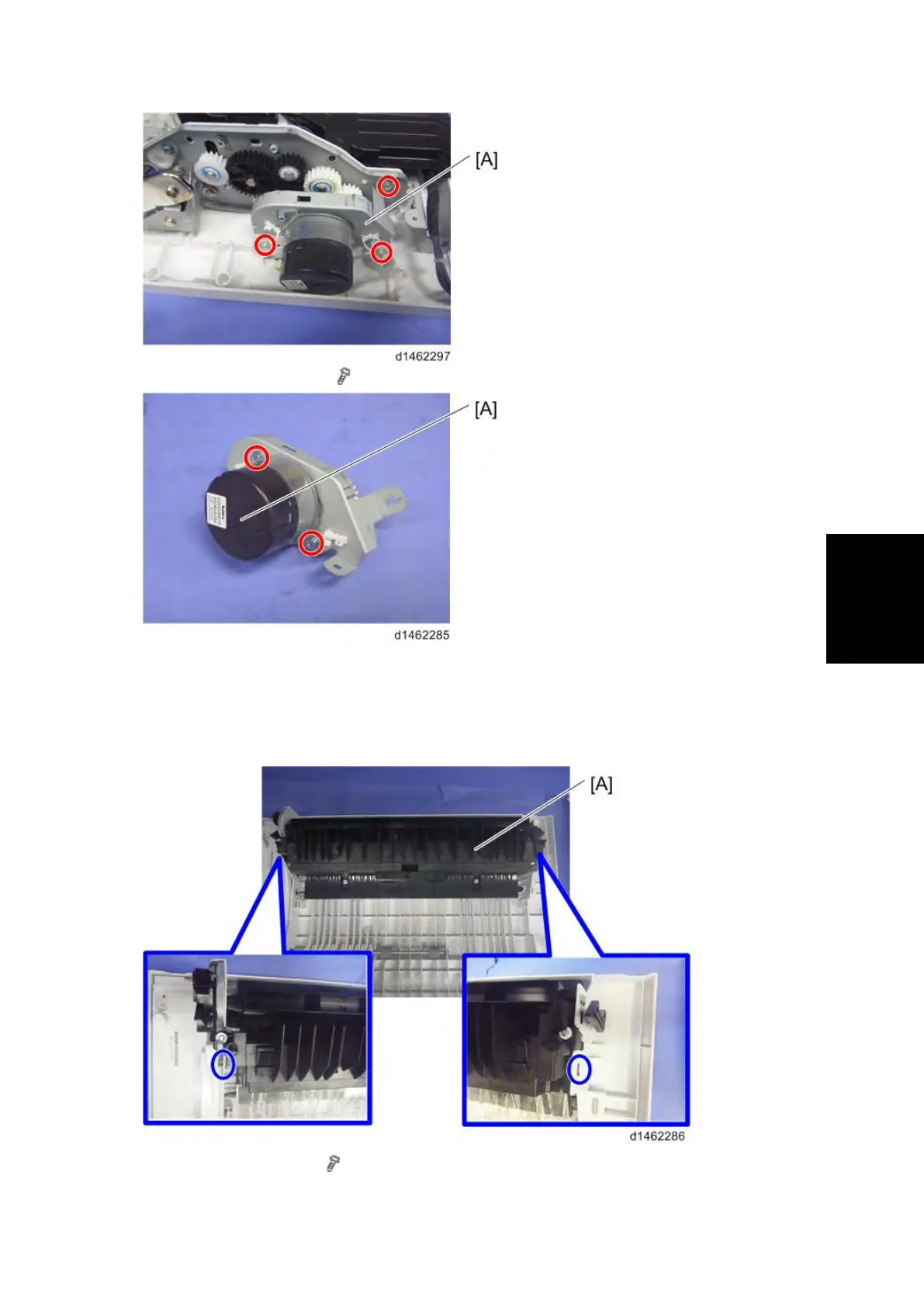

4. Duplex/By-pass Motor [A] (
×2)
4.16.3 DUPLEX ENTRANCE SENSOR
1. Harness guide (page 4-134 "Duplex Unit")
2. Remove two tabs, and remove the transport guide [A].
3. Duplex entrance unit [A] (
×8)
