Ricoh D147 - Installation Procedure; Accessory Check

Tray Heater for Paper Feed Unit PB3150
D146/D147/D148/D149/D150 2-206 SM
2.42 TRAY HEATER FOR PAPER FEED UNIT PB3150
 Unplug the machine power cord before starting the following procedure.
 Be careful not to damage any of the harnesses.
 After doing this procedure, make sure that harnesses are not damaged or pinched.
2.42.1 ACCESSORY CHECK
No. Description Q’ty
1 Tray Heater 1
2 Harness 1
3 Spring Screw:M4 X 10 1
2.42.2 INSTALLATION PROCEDURE
1. Remove the trays from main machine and Paper Feed unit PB3150.

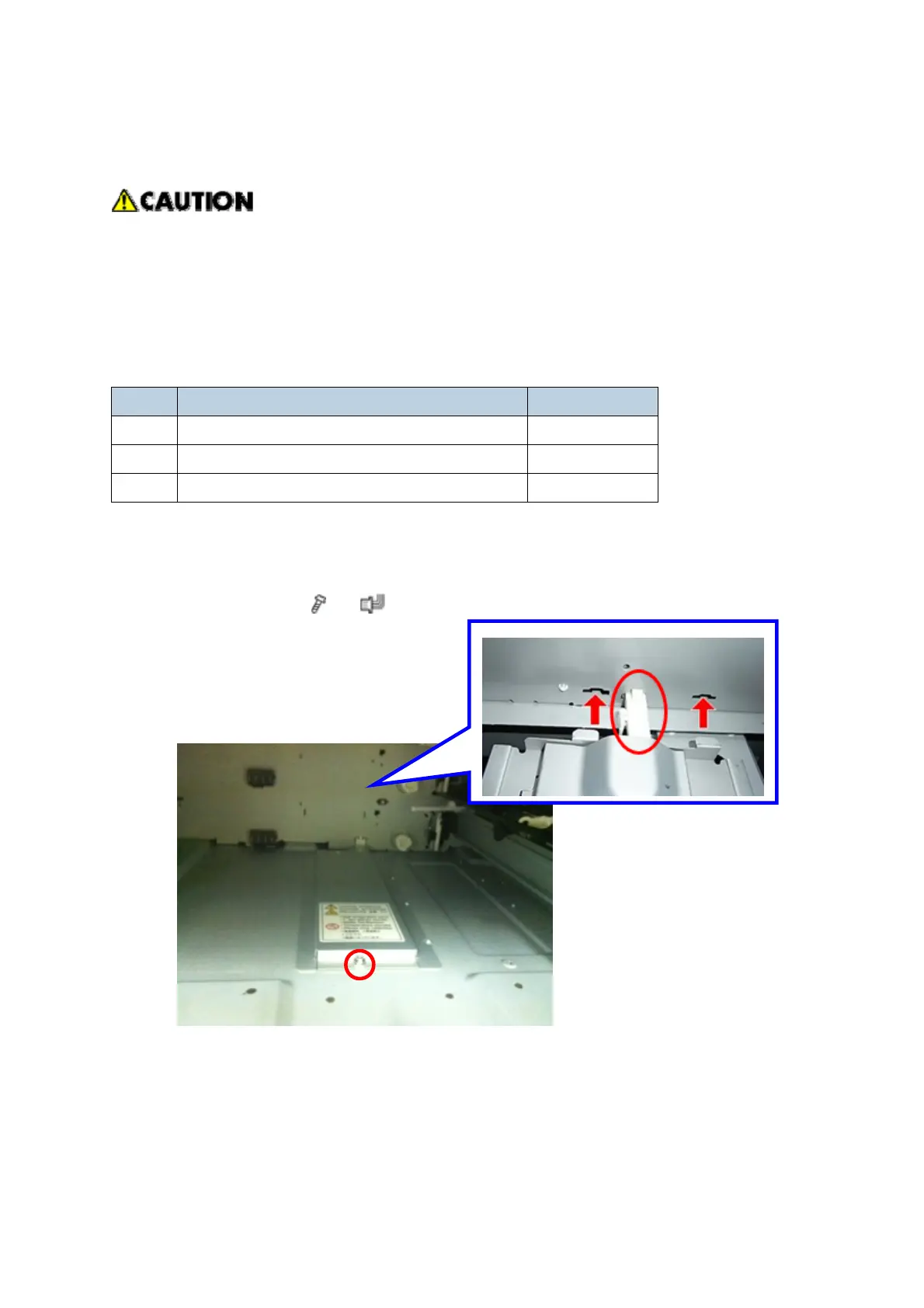

2. Attach the tray heater. (
x 1, ×1)
3. Reattach trays.
Rev. 04
/
07
/
2014
⇒
