Procedure

D146/D147/D148/D149/D150 5-4 System Maintenance Section

5.3.1 UPDATE PROCEDURE

1. First download the software to be updated to the SD card.

2. Switch the power OFF.

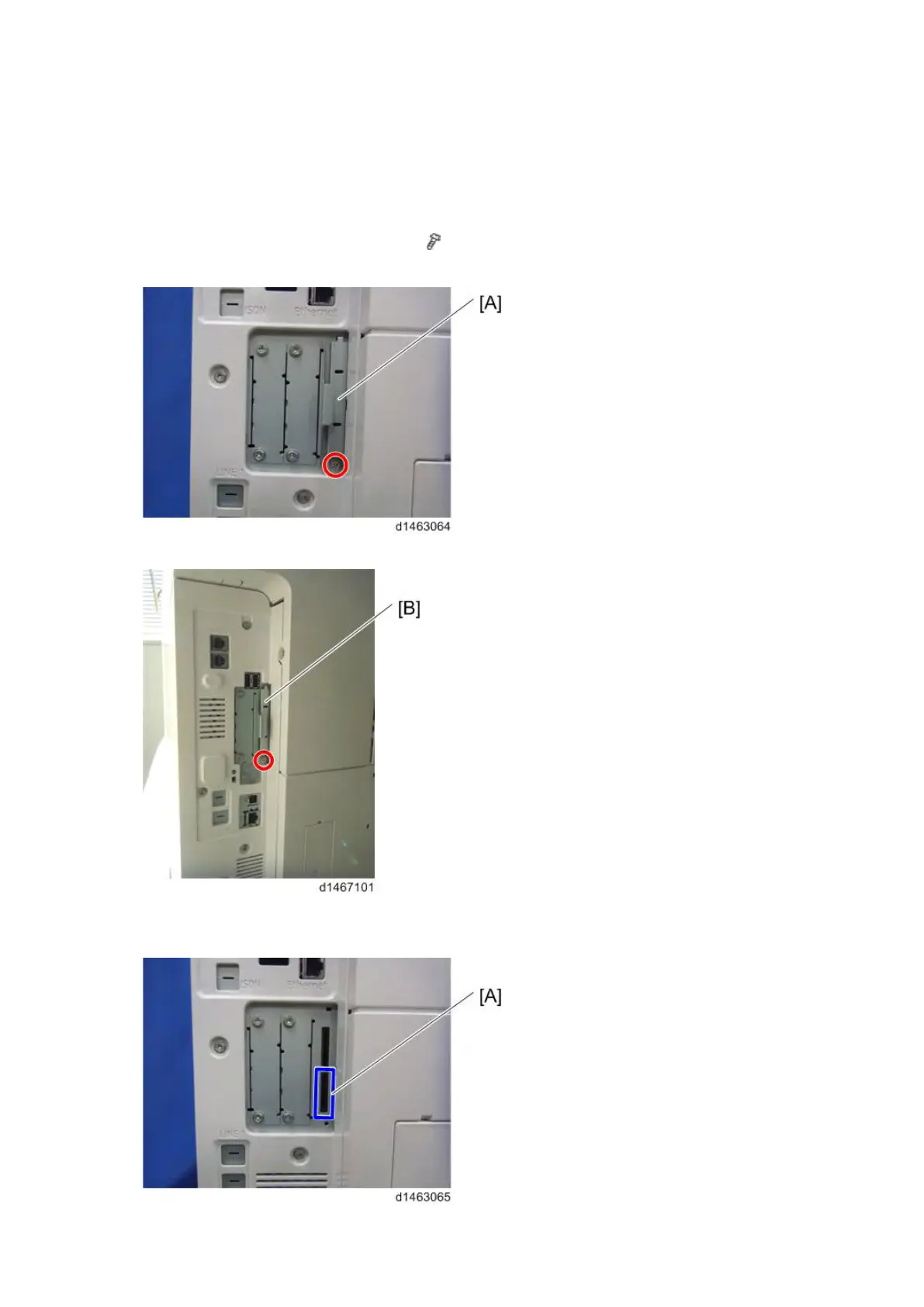

3. Remove the SD card slot cover [A][B]. (

×1)

D148/D149/D150:

D146/D147:

4. Insert the SD card [A] straight in slot 2.

D148/D149/D150:
