Pick-up Roller, Feed Roller, Friction Roller

D695 18 SM

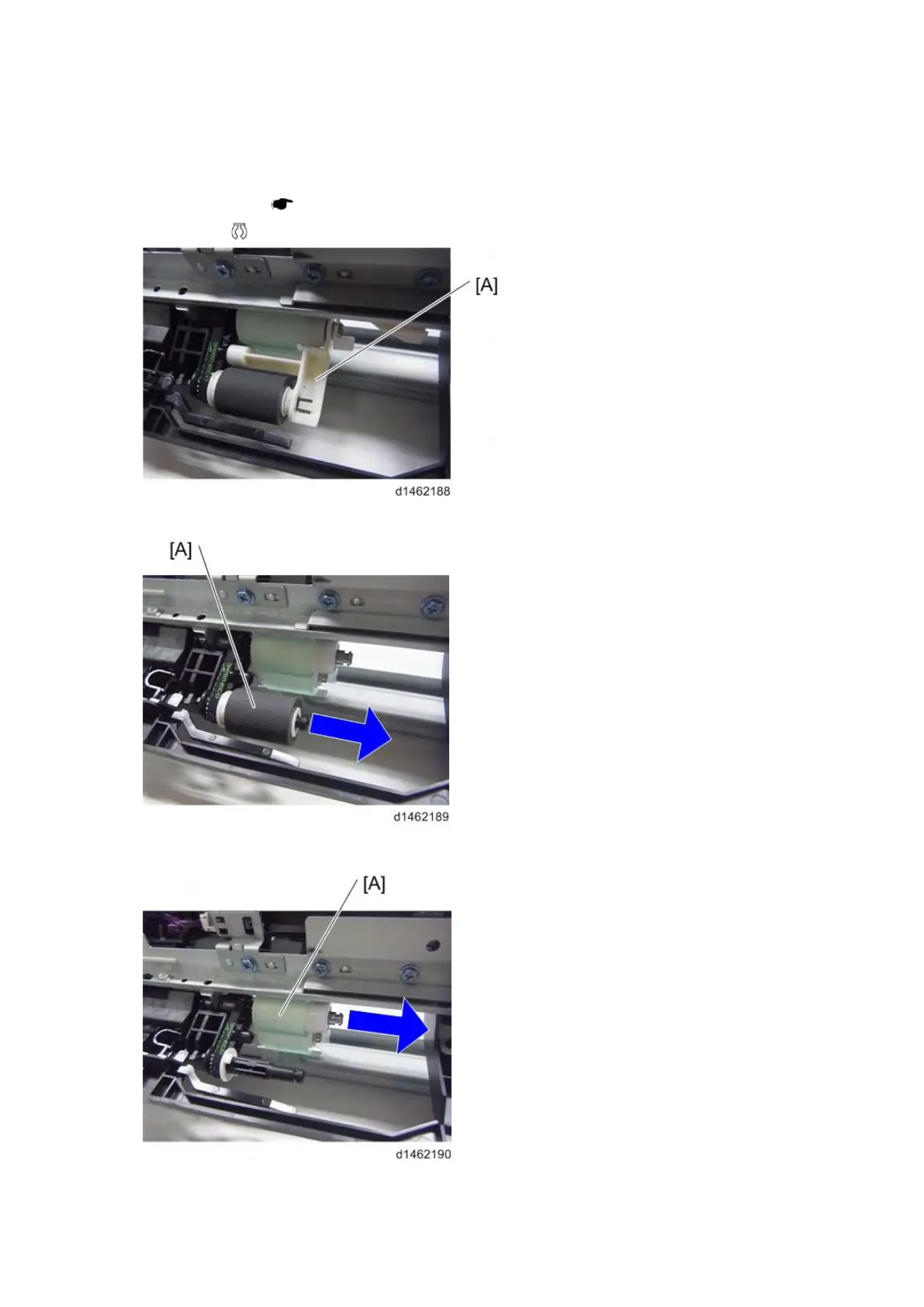

1.16 PICK-UP ROLLER, FEED ROLLER, FRICTION ROLLER

1. Paper feed unit ( page 7)

2. Holder [A] (

×1)

3. Pick-up roller [A]

4. Feed roller [A]
