Proof tray full sensor

SM 13 D686/D687

BOOKLET FINISHER

SR3150 / FINISHER

SR3140

(D686/D687)

1.4 PROOF TRAY FULL SENSOR

1. Proof tray ( page 7)

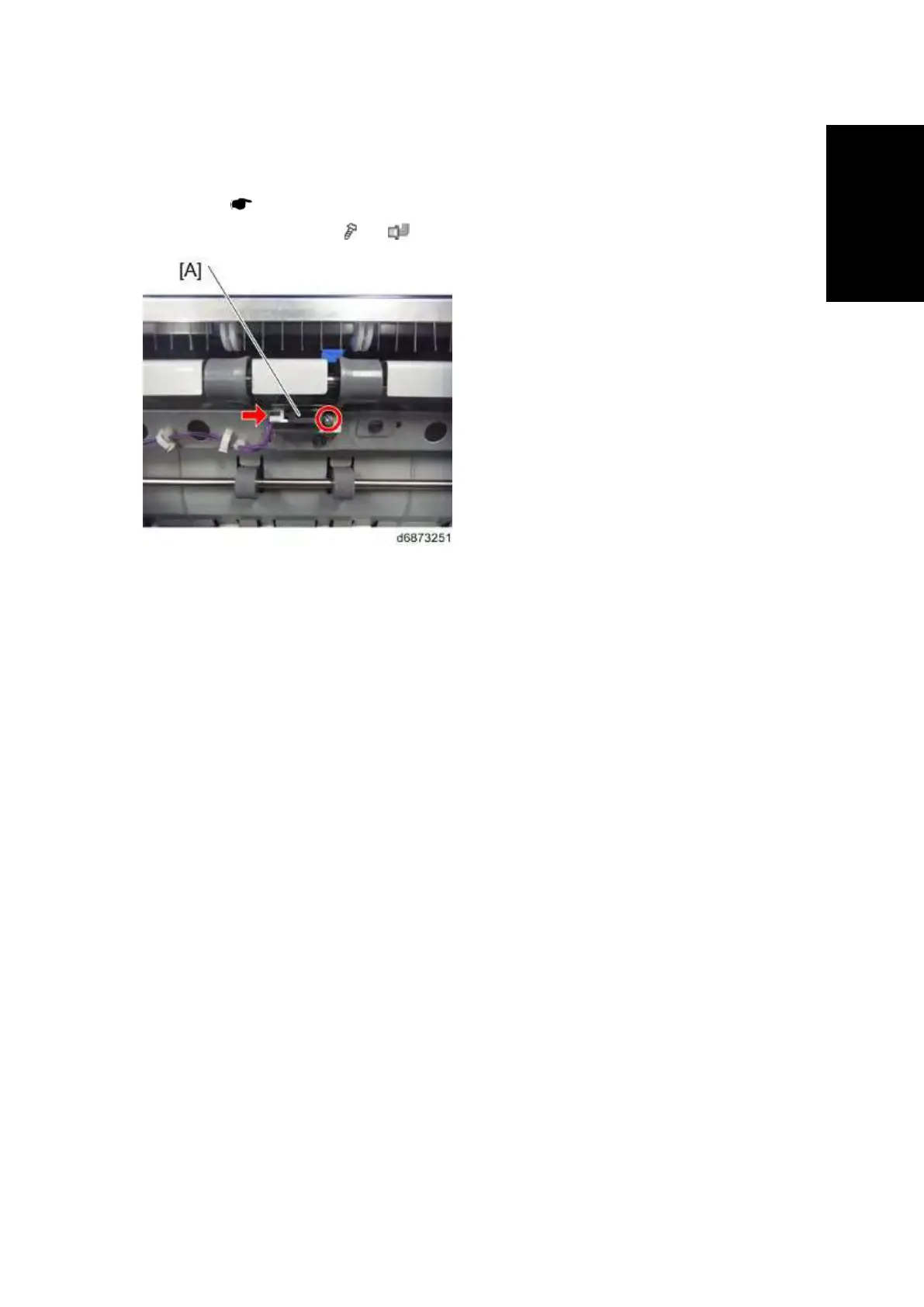

2. Proof tray full sensor [A] (

×1, ×1)
