Bottom Plate HP Sensor

D683 26 SM

1.20 BOTTOM PLATE HP SENSOR

1. Original feed unit (page 10 "Original Feed Unit")

2. ADF front cover (page 7 "ADF Front Cover")

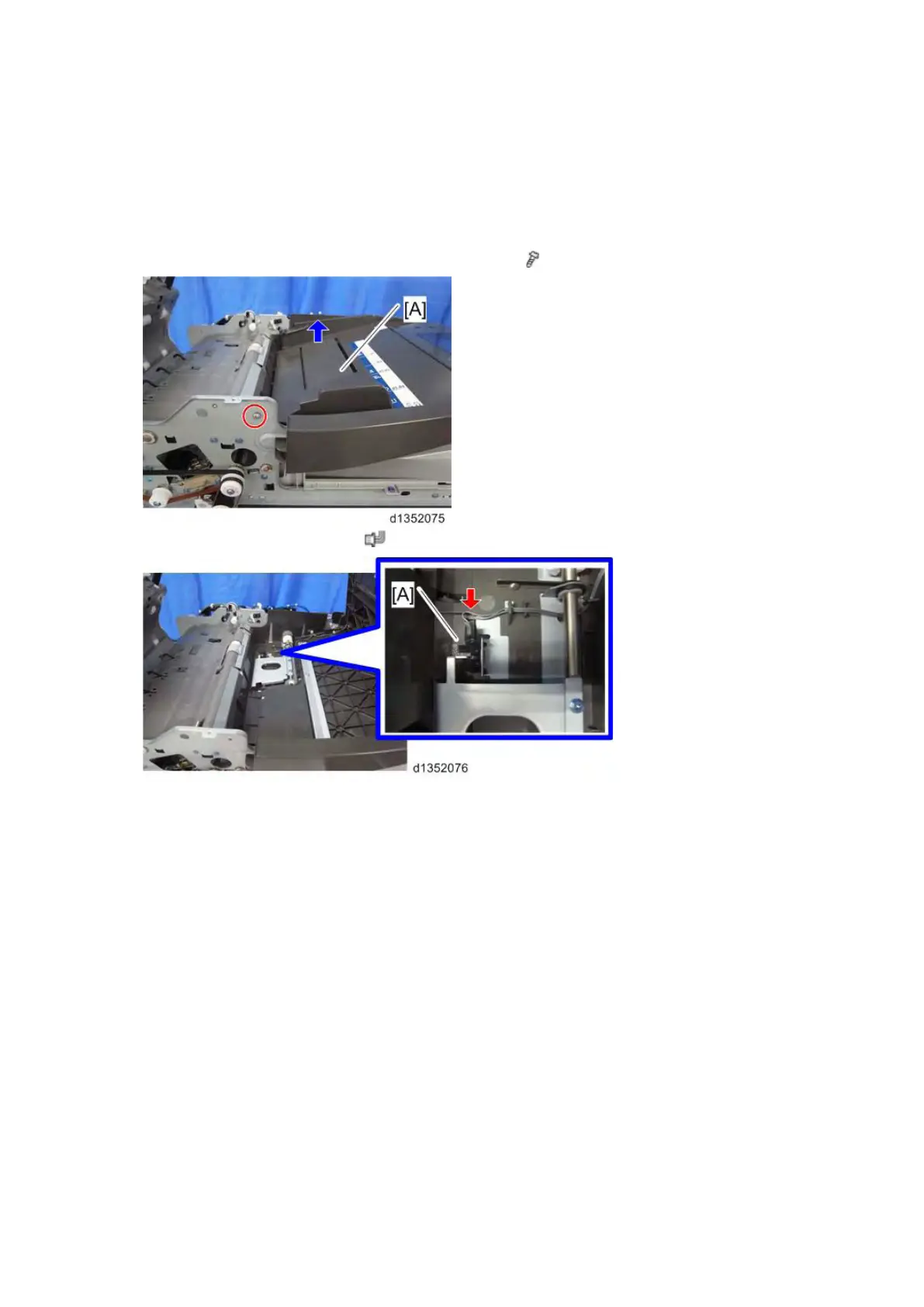

3. Remove the screw and raise the original tray [A] (

×1)

4. Bottom plate HP sensor [A] (

×1)
