Ricoh D147 - Imaging Drive Unit

Drive Unit
SM 4-85 D146/D147/D148/D149/D150
Replacement
and Adjustment
4.11.5 IMAGING DRIVE UNIT
1. Paper transfer contact motor unit (page 4-83 "Transfer Motor Unit")
2. Power supply box (page 4-154 "Paper Transport IOB")

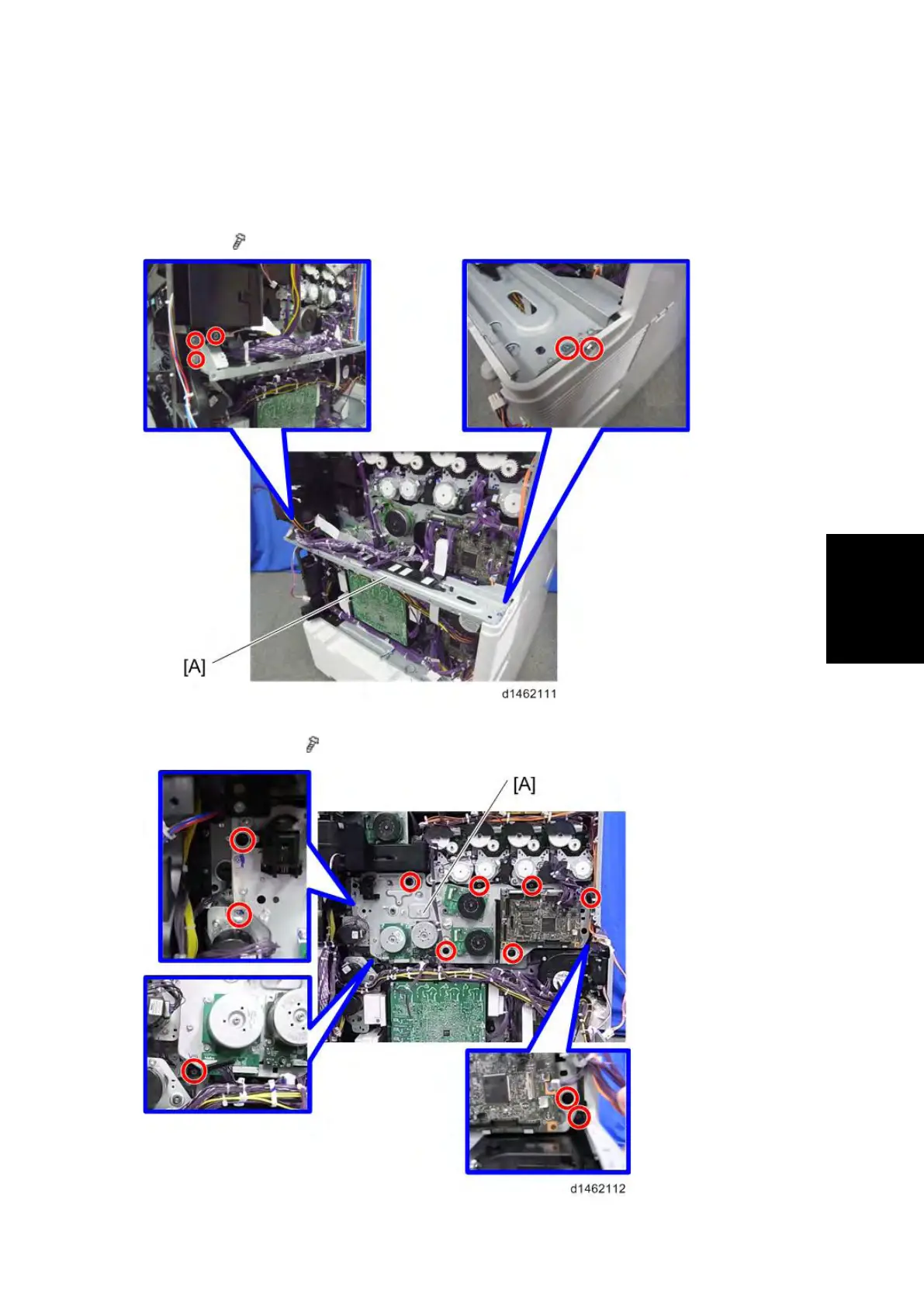

3. Bracket [A] (
×4)
4. Drive cooling fan (page 4-161 "Drive Cooling Fan (D148/D149/D150)")
5. Imaging drive unit [A] (
×11)
