Ricoh D147 - Waste Toner Cover; Reverse Tray

To Next Page

To Previous Page

Exterior Covers

D146/D147/D148/D149/D150 4-14 SM

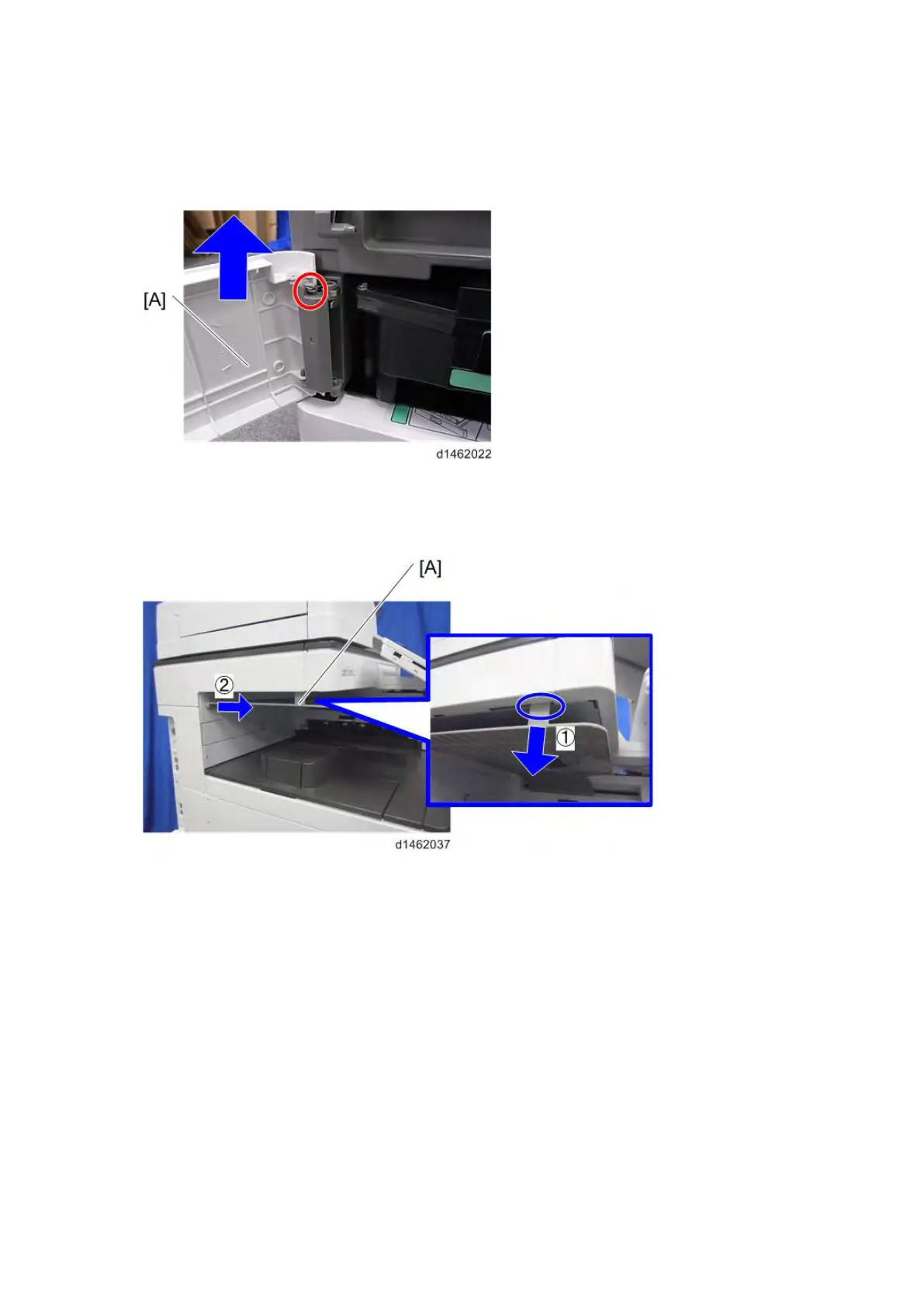

4.4.14 WASTE TONER COVER

1. Front cover (page 4-5 "Front Cover")

2. Waste Toner Cover [A]

4.4.15 REVERSE TRAY

1. Reverse Tray [A]
