Ricoh D147 - Feed Belt

Feed Belt
SM 5 D779
ARDF DF3090
(D779)
1.5 FEED BELT
1. Open the left cover.
2. Original feed unit (
page 5)

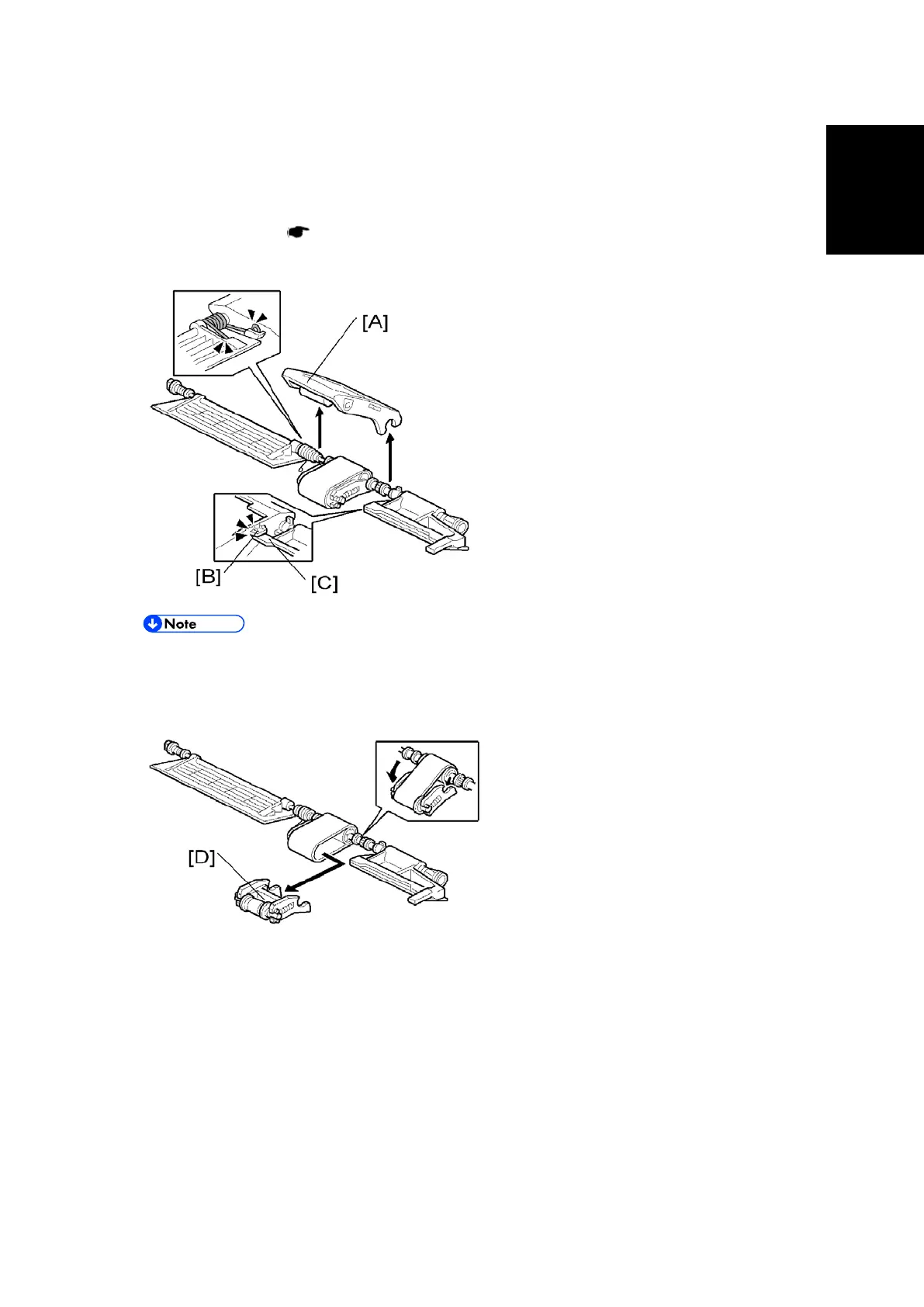

3. Feed belt cover [A] (spring x 1)
 When reassembling the feed belt cover, make sure that the projection [B] of the feed
belt cover is on the guide plate rear [C].
4. Belt tension unit [D]
