Paper Exit Cover

D690 6 SM

1.5 PAPER EXIT COVER

1. Paper exit tray ( page 5)

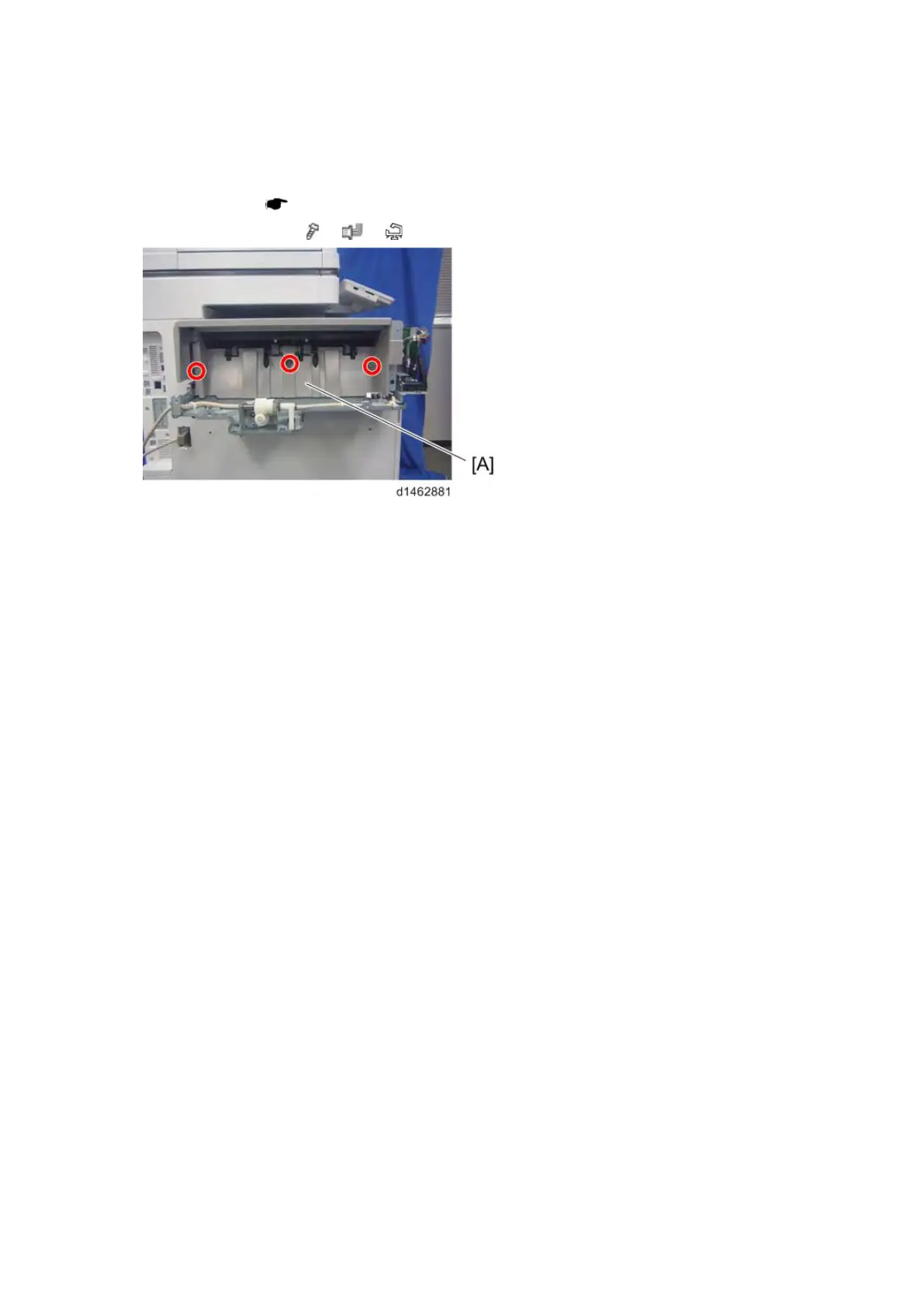

2. Paper exit cover [A] (

×3, ×3, ×2)
