Ricoh D147 - Booklet Stitch Unit

Booklet stitch unit
SM 23 D686/D687
BOOKLET FINISHER
SR3150 / FINISHER
SR3140
(D686/D687)

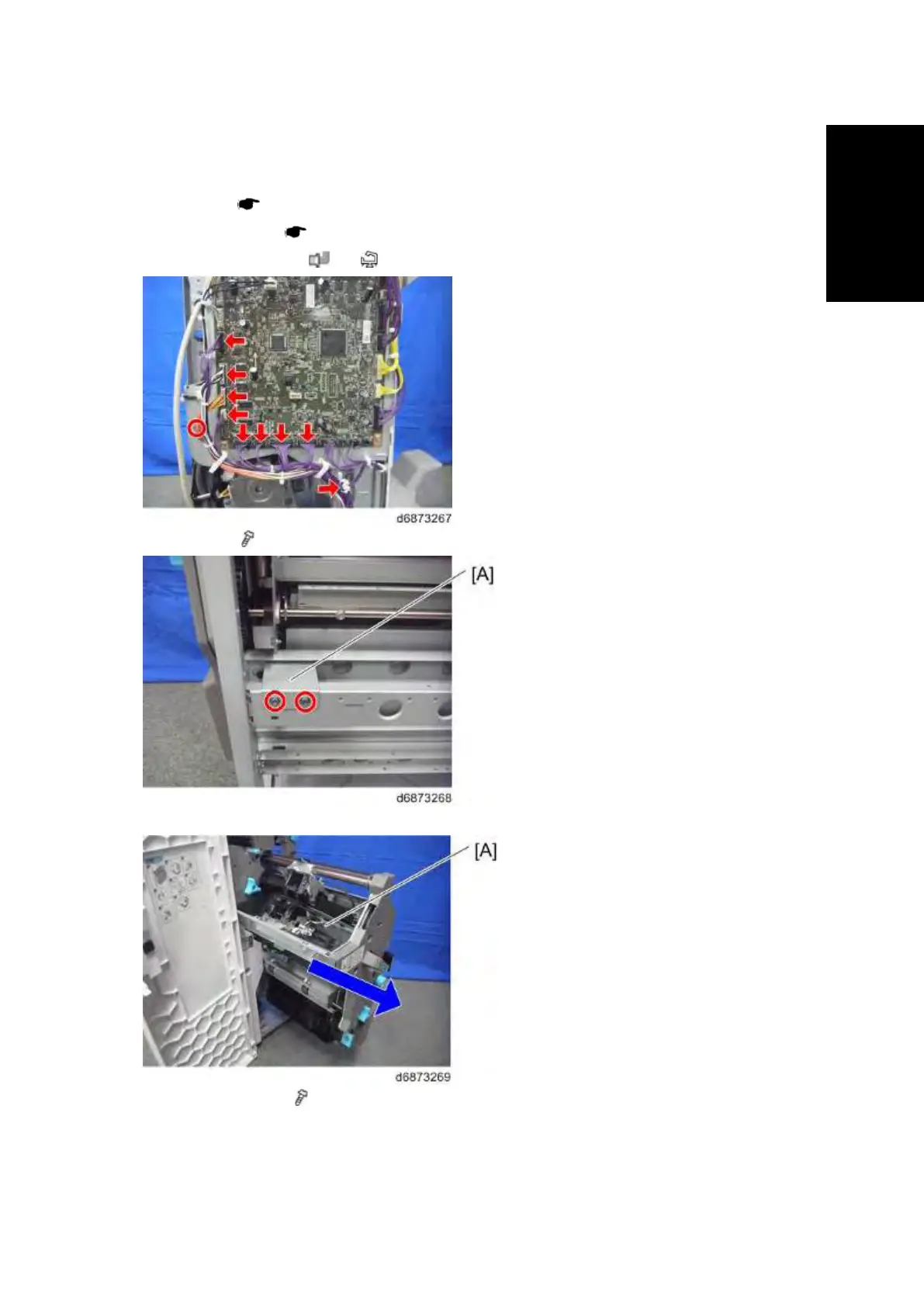

1.12 BOOKLET STITCH UNIT
1. Rear cover ( page 3)
2. Open front cover (
page 1)
3. Remove connectors (
×9, ×3, ground plate×1)
4. Stopper [A] (
×2)
5. Pull out booklet stitch unit [A].
6. Booklet stitch unit (
×2)
