Paper exit tray

SM 5 D690

INTERNAL

FINISHER

SR3130

(D690)

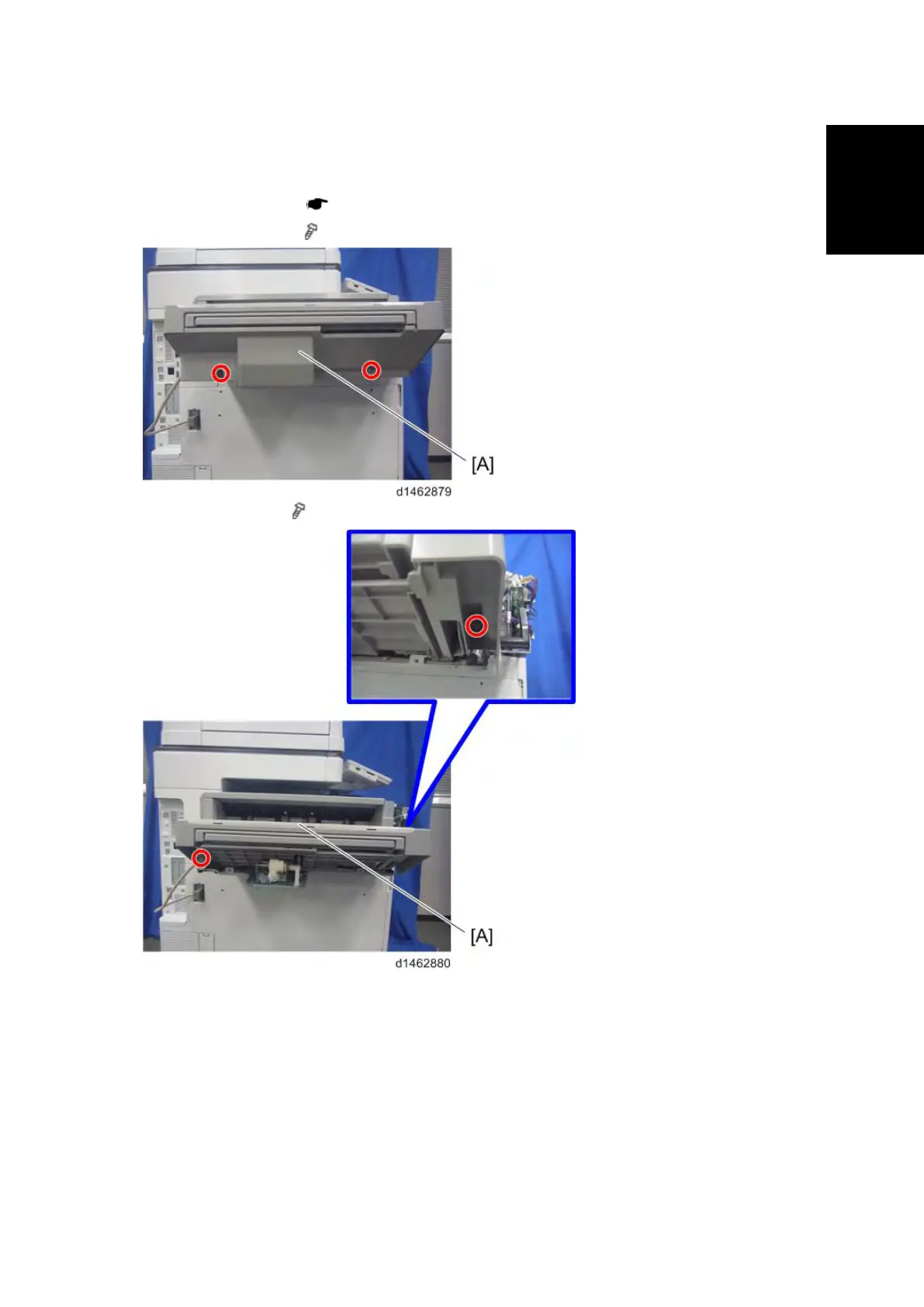

1.4 PAPER EXIT TRAY

1. Finisher front cover ( page 3 )

2. Left lower cover [A] (

×2)

3. Paper exit tray [A] ( ×2)
