Shift paper eject sensor

D686/D687 22 SM

1.11 SHIFT PAPER EJECT SENSOR

1. Left center cover ( page 9)

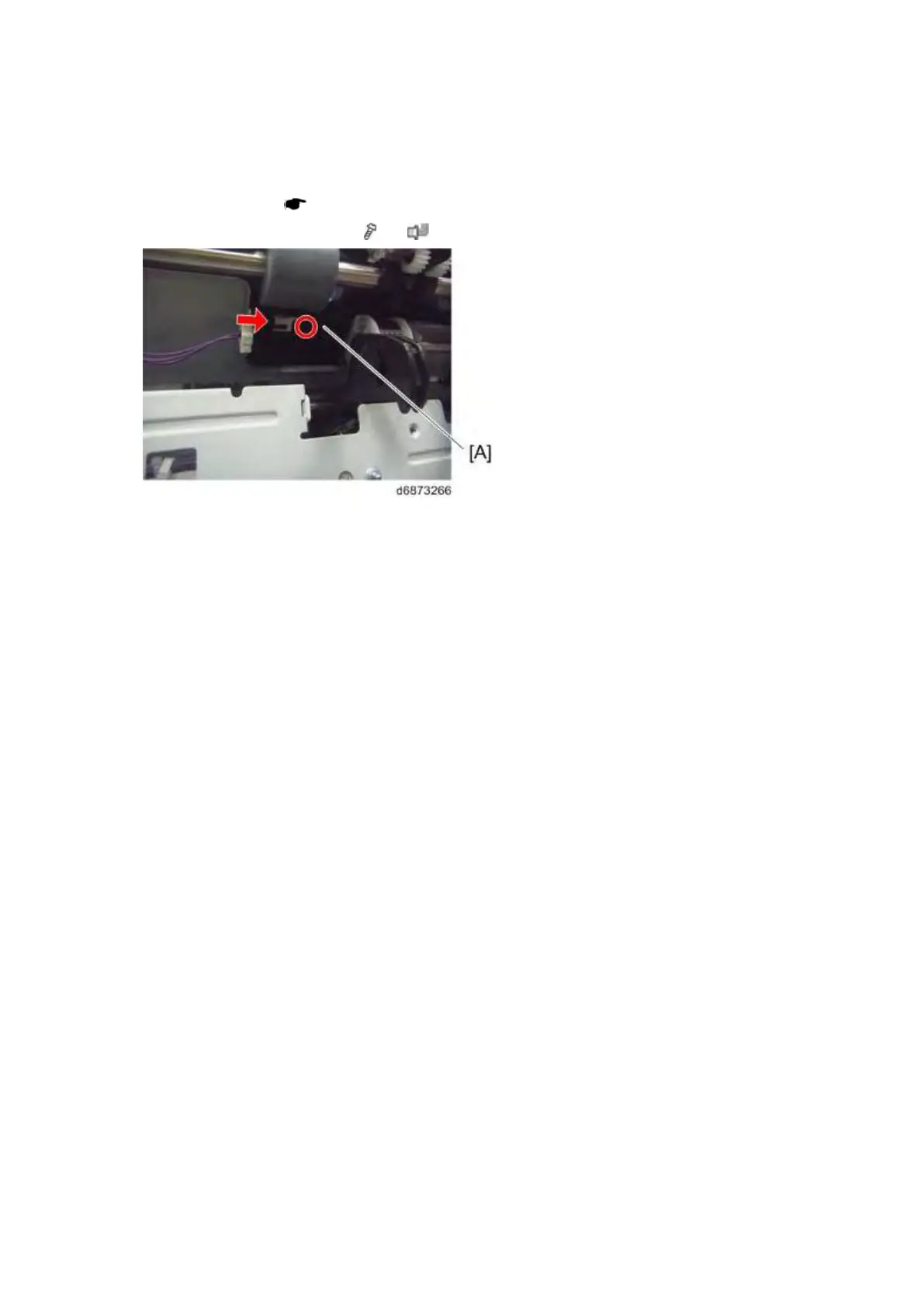

2. Shift paper eject sensor [A] (

×1, ×1)
