Ricoh D147 - Reverse Sensor

To Next Page

To Previous Page

Paper Exit

D146/D147/D148/D149/D150 4-114 SM

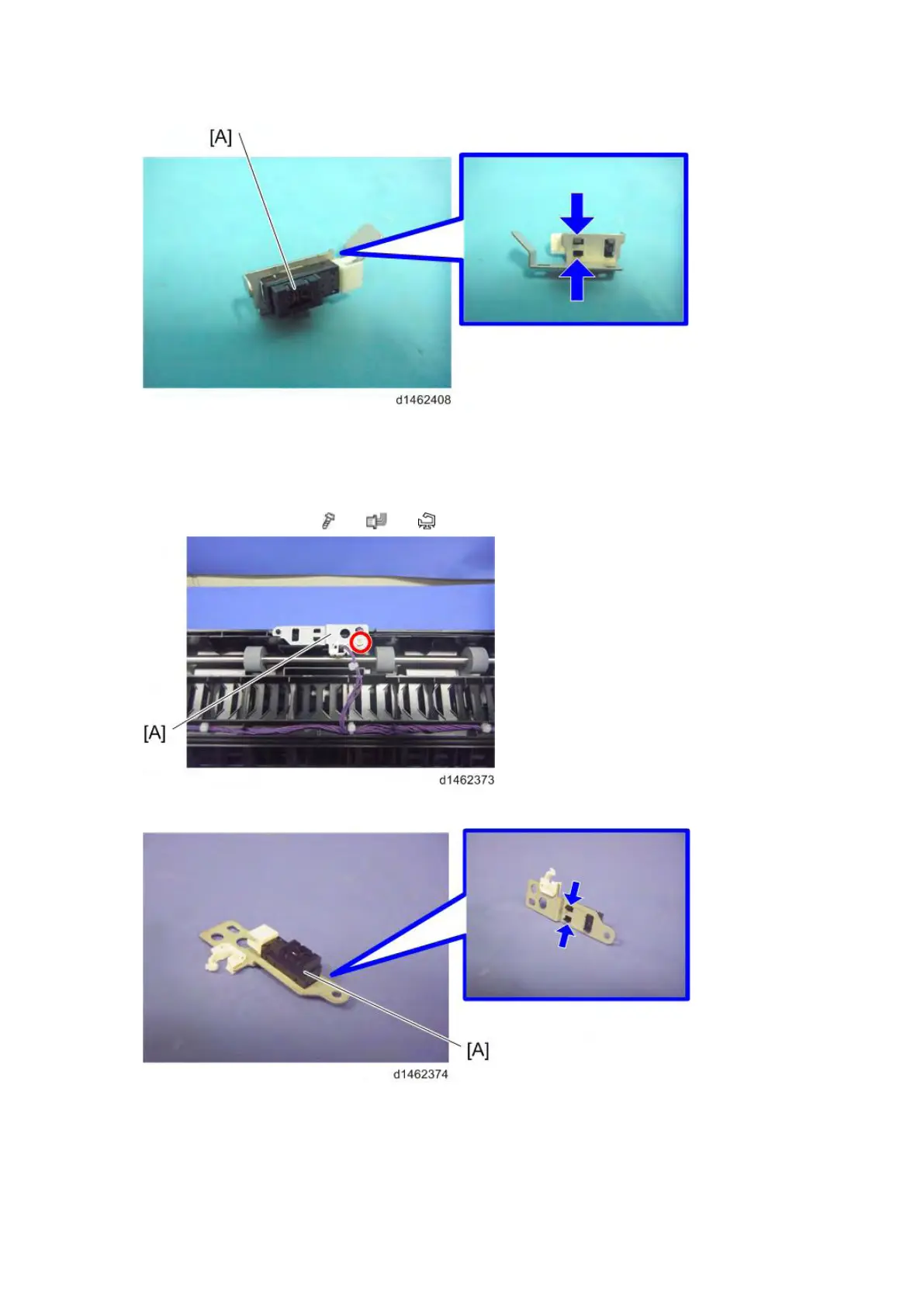

4.13.4 REVERSE SENSOR

1. Paper exit unit

2. Reverse sensor unit [A] ( ×1, ×1, ×1)

3. Reverse sensor [A]
