Pick-up Roller, Feed Roller, Friction Roller

SM 13 D694

PAPER FEED

UNIT PB3150

(D694)

1.8 PICK-UP ROLLER, FEED ROLLER, FRICTION ROLLER

1. Paper feed unit ( page 9)

2. Holder [A] (

×1)

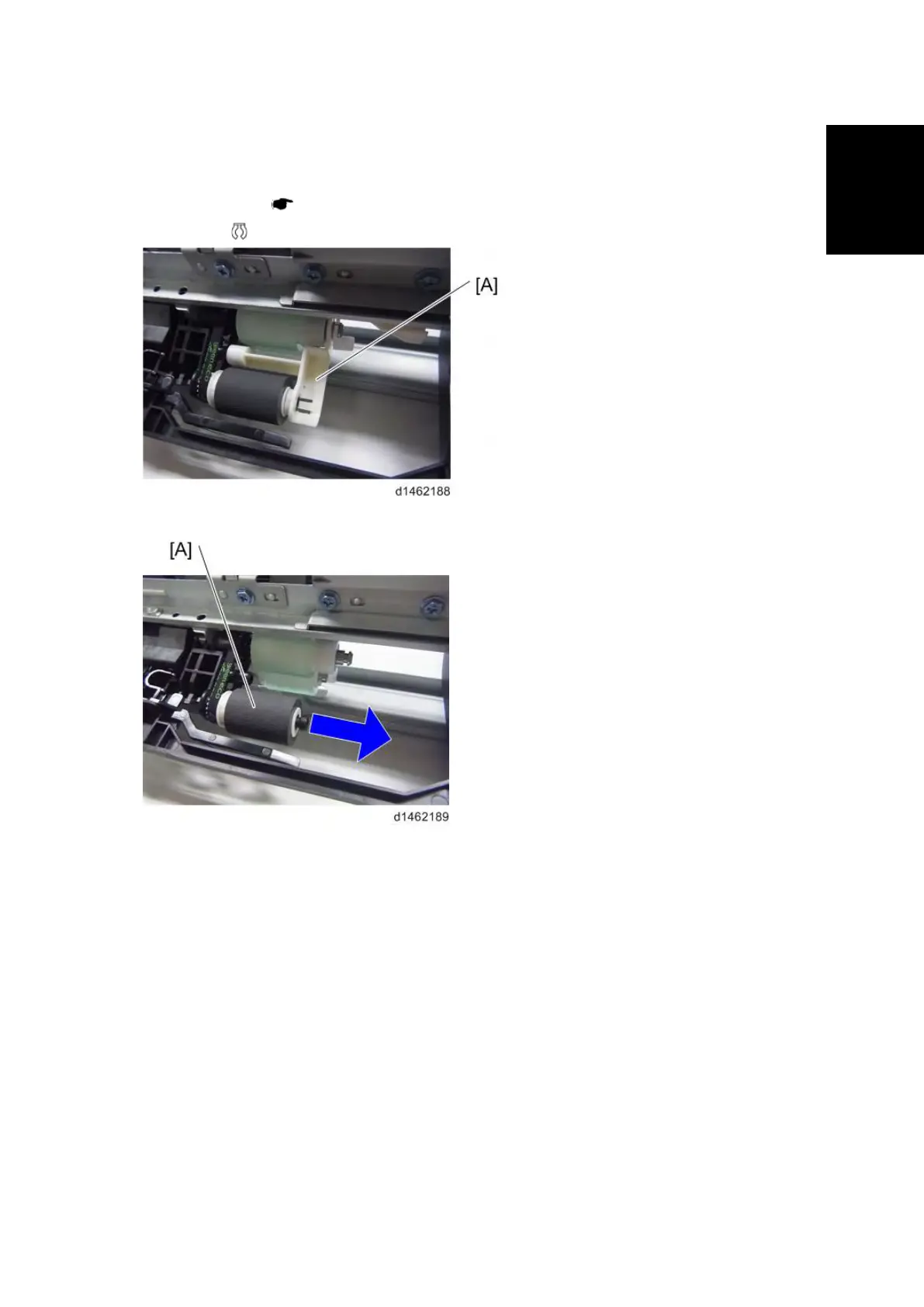

3. Pick-up roller [A]
