Original Feed Unit

SM 3 D779

ARDF DF3090

(D779)

1.3 ORIGINAL FEED UNIT

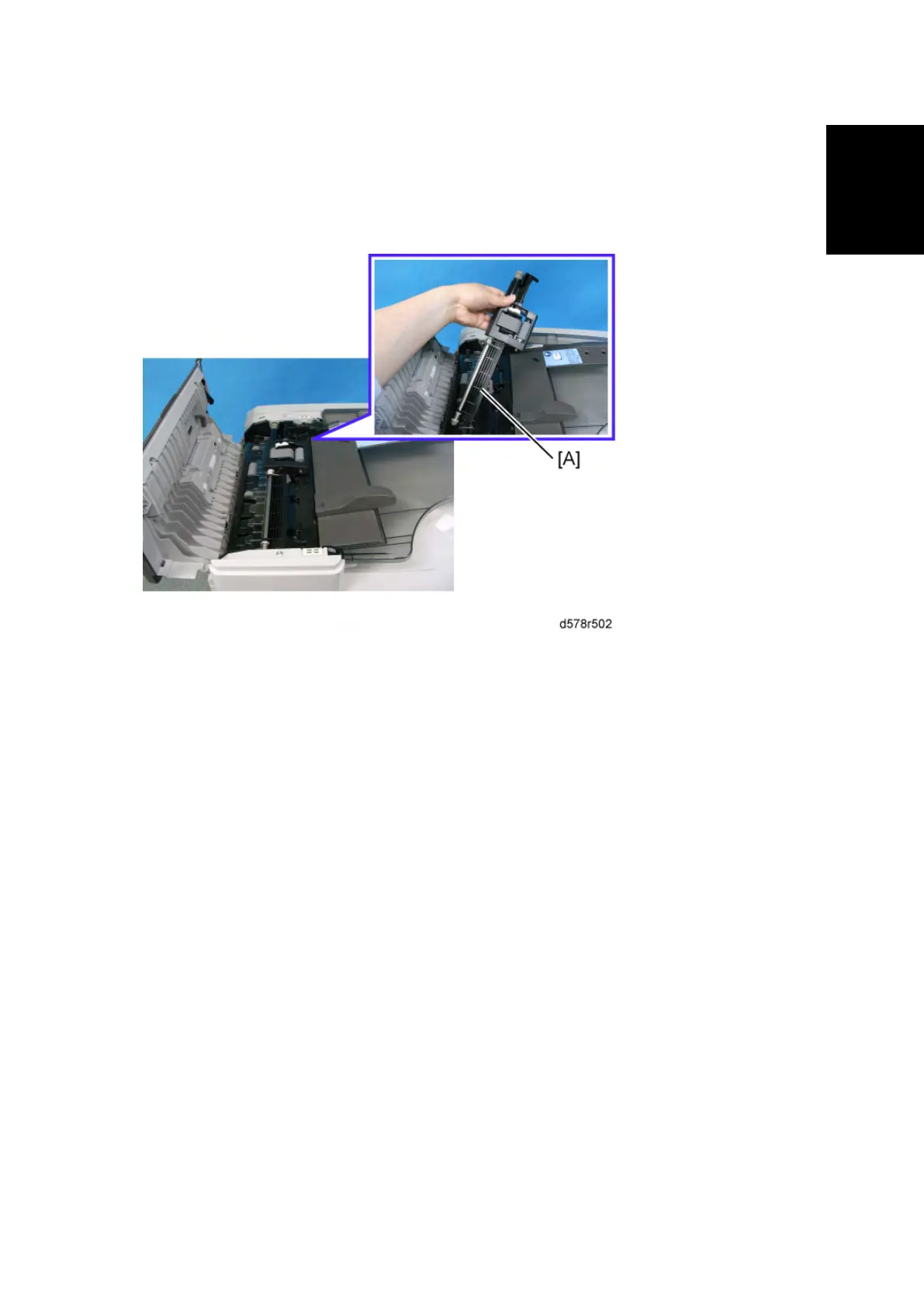

1. Open the left cover.

2. Original feed unit [A].
