Paper Bail Home Position Sensor

SM 13 D690

INTERNAL

FINISHER

SR3130

(D690)

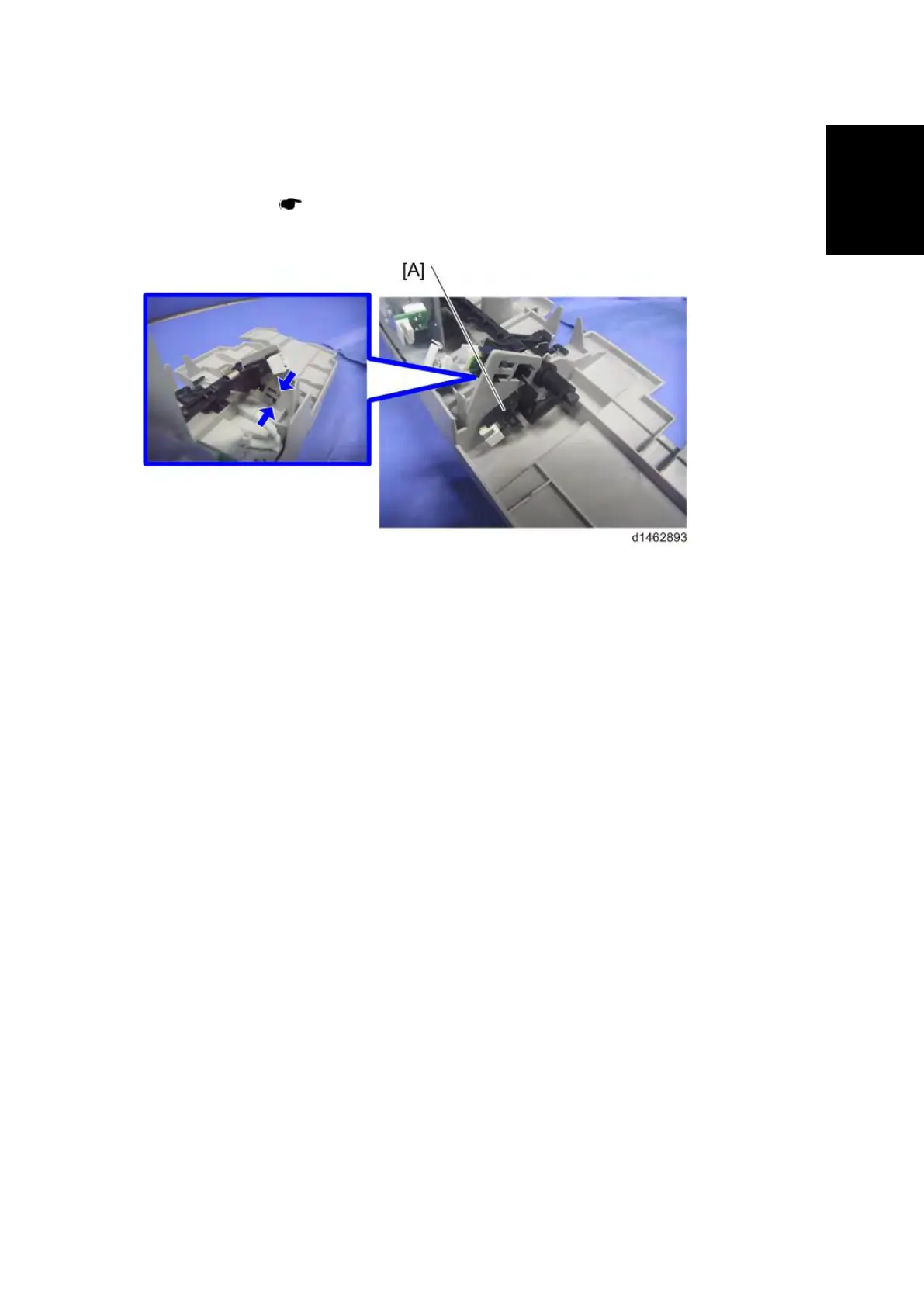

1.11 PAPER BAIL HOME POSITION SENSOR

1. Paper exit cover ( page 6)

2. Paper bail home position sensor [A]
