Ricoh D147 - Board C; Lcd Panel

Controller Unit
D146/D147/D148/D149/D150 4-22 SM

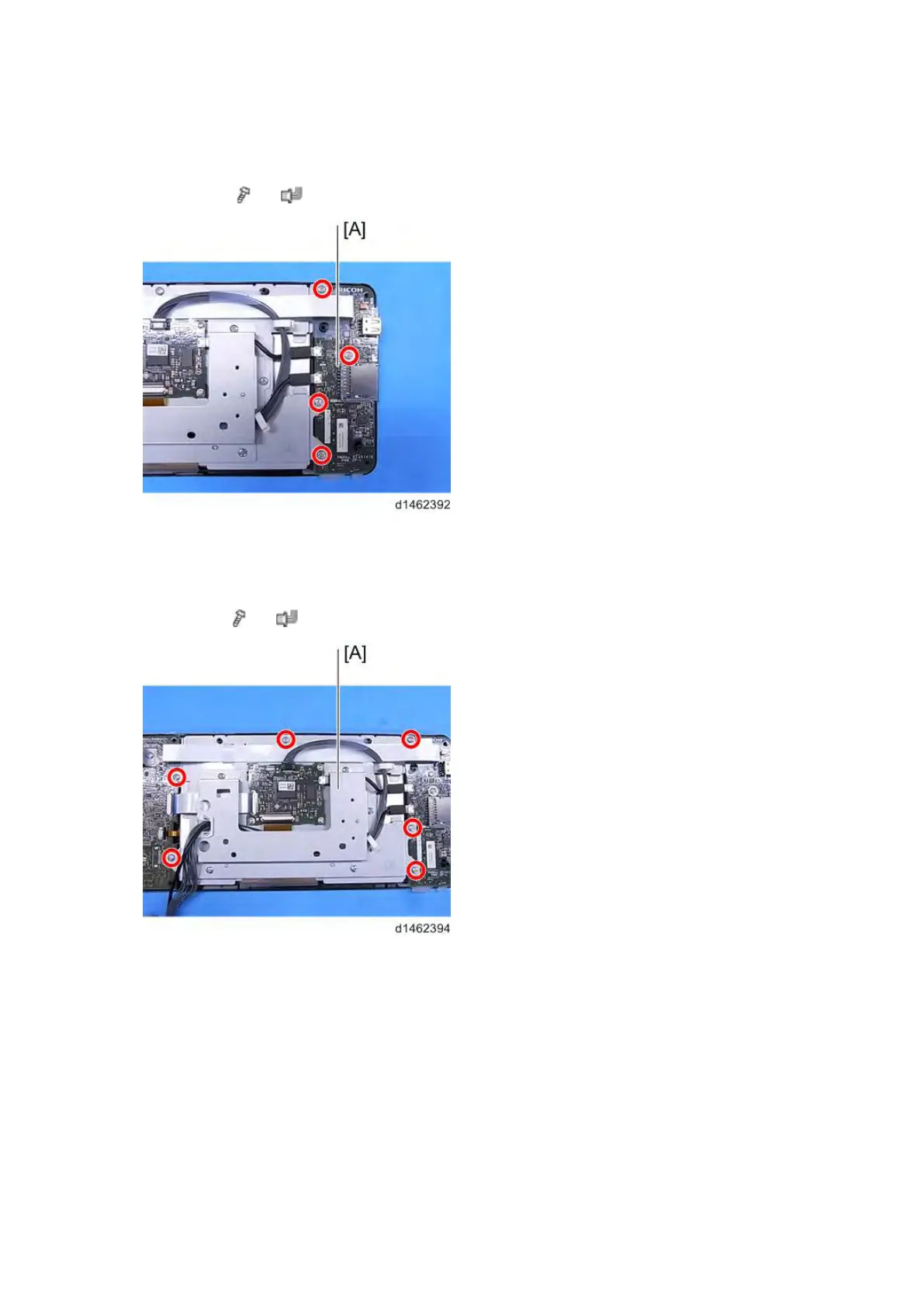

4.5.4 BOARD C
1. Operation panel arm bracket (page 4-19 "Operation Panel")
2. Board C [A] ( ×4, ×1, USB×2)
4.5.5 LCD PANEL
1. Operation panel arm bracket (page 4-19 "Operation Panel")
2. Bracket [A] ( ×6, ×5, USB×2)
3. LCD panel unit [A]
