Ricoh D147 - Toner Transport Motor; Sub Hopper

Drive Unit
D146/D147/D148/D149/D150 4-90 SM

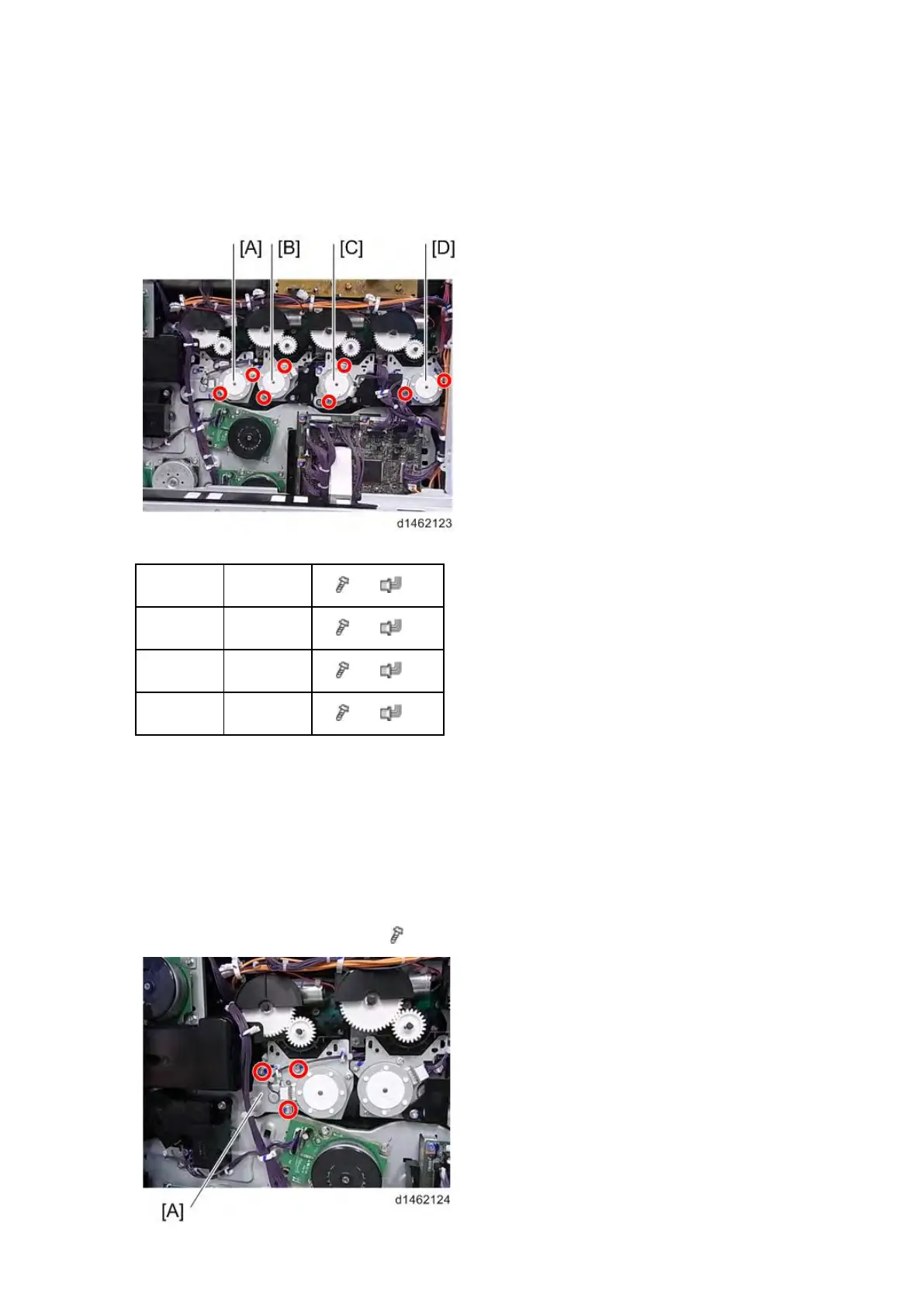

4.11.14 TONER TRANSPORT MOTOR
1. Controller box (page 4-85 "Imaging Drive Unit")
2. Toner transport motor
[A] K
×2, ×1
[B] C
×2, ×1
[C] M
×2, ×1
[D] Y
×2, ×1
4.11.15 SUB HOPPER
K
1. Pull out the image transfer unit about 5cm.
2. Controller box. (page 4-83 "Transfer Motor Unit")
3. Toner transport motor unit (K) [A] (
×3)
