Ricoh D147 - Lcd Panel

Operation Panel Unit
D148 8 SM
2.1.6 LCD PANEL
1. PCB-L (page 4 "PCB-L")
2. LCD (page 6 "LCD")
3. PCB-R (page 7 "PCB-R")
4. Speaker1 (page 7 "Speaker 1")

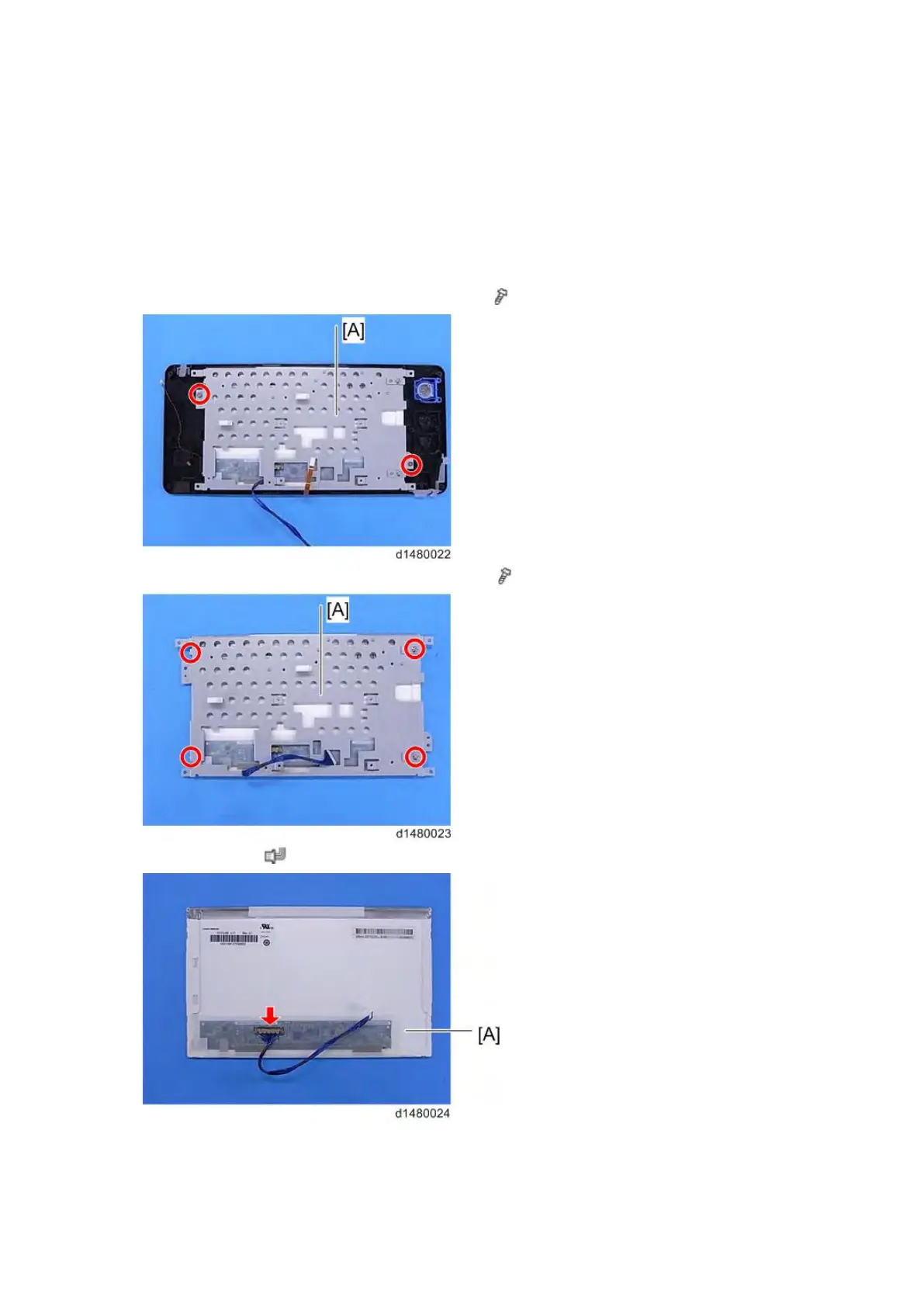

5. Remove the LCD panel with the bracket [A]. (
×2)
6. Remove the bracket [A] from the LCD panel. ( ×4)
7. LCD panel [A] ( ×1)
