Paper eject cover open/close motor

SM 11 D686/D687

BOOKLET FINISHER

SR3150 / FINISHER

SR3140

(D686/D687)

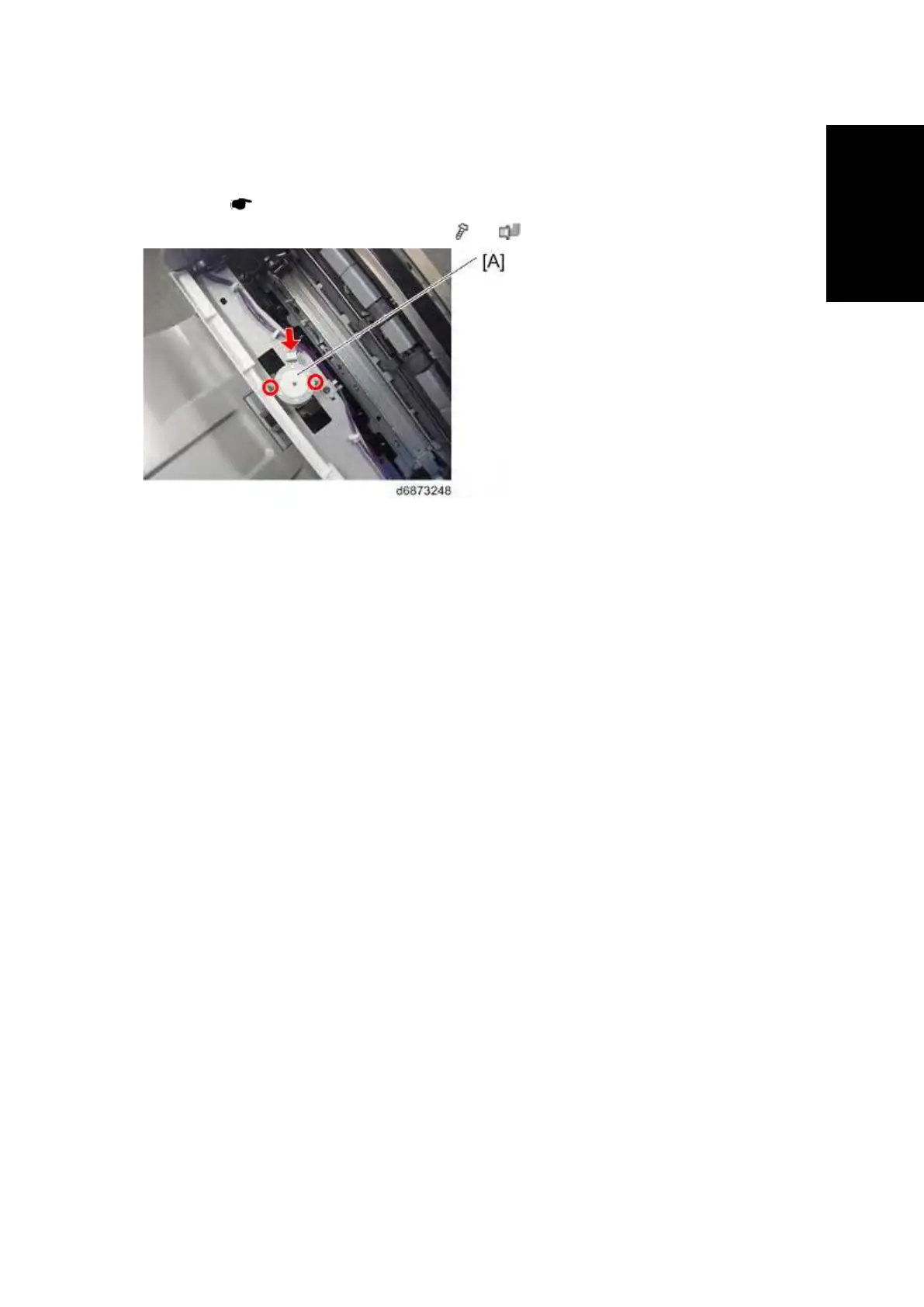

1.2 PAPER EJECT COVER OPEN/CLOSE MOTOR

1. Proof tray ( page 7)

2. Paper eject cover open/close motor [A] (

×2, ×1)
