Ricoh D147 - Machine Dimensions

To Next Page

To Previous Page

Installation Requirements

SM 2-3 D146/D147/D148/D149/D150

Installation

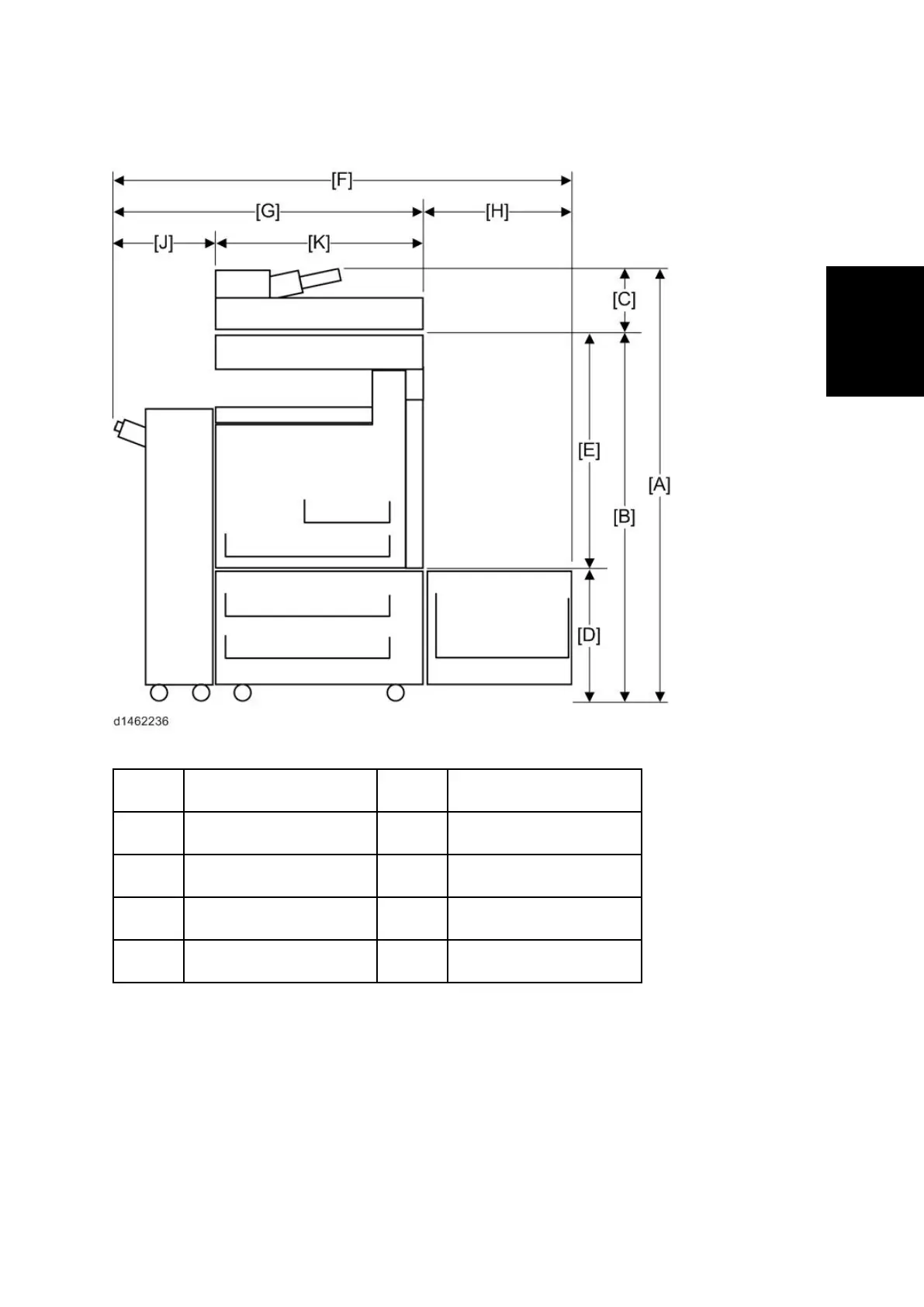

2.1.4 MACHINE DIMENSIONS

[A] 1210 mm [F] 1589.5 mm

[B] 1030 mm [G] 1249.5 mm

[C] 180 mm [H] 340 mm

[D] 247 mm [J] 662.5 mm

[E] 783 mm [K] 587 mm
