Ricoh D147 - Registration Sensor

Paper Feed
D146/D147/D148/D149/D150 4-126 SM

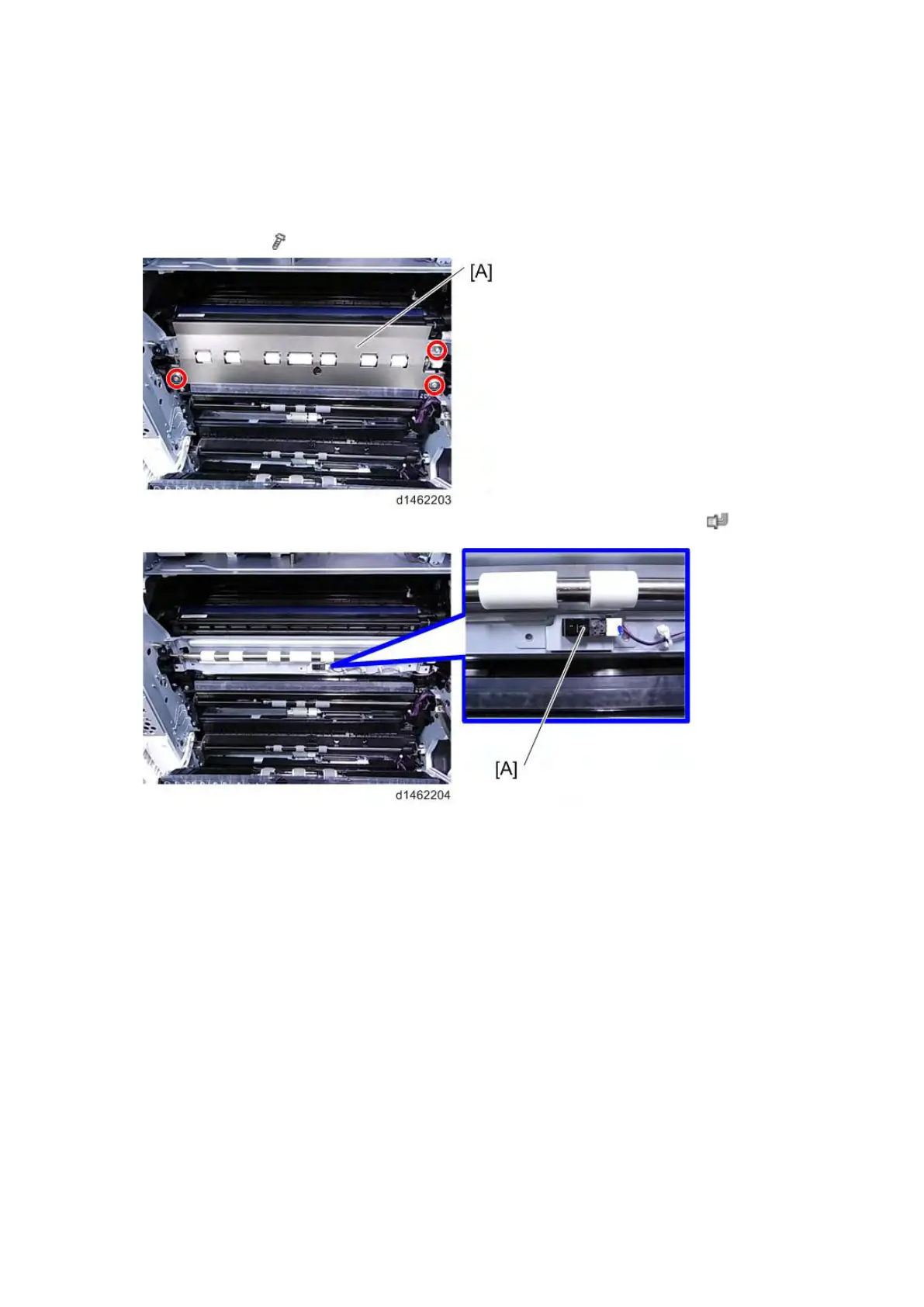

4.14.9 REGISTRATION SENSOR
1. Open the right cover (page 4-134 "Duplex Unit")
2. Paper transfer roller unit (page 4-73 "Paper Transfer Roller Unit ")
3. Inner bracket [A] (
×3)
4. Remove the registration sensor from the stay gap using a slotted screwdriver (
×1)
