ADF Entrance Motor

D683 30 SM

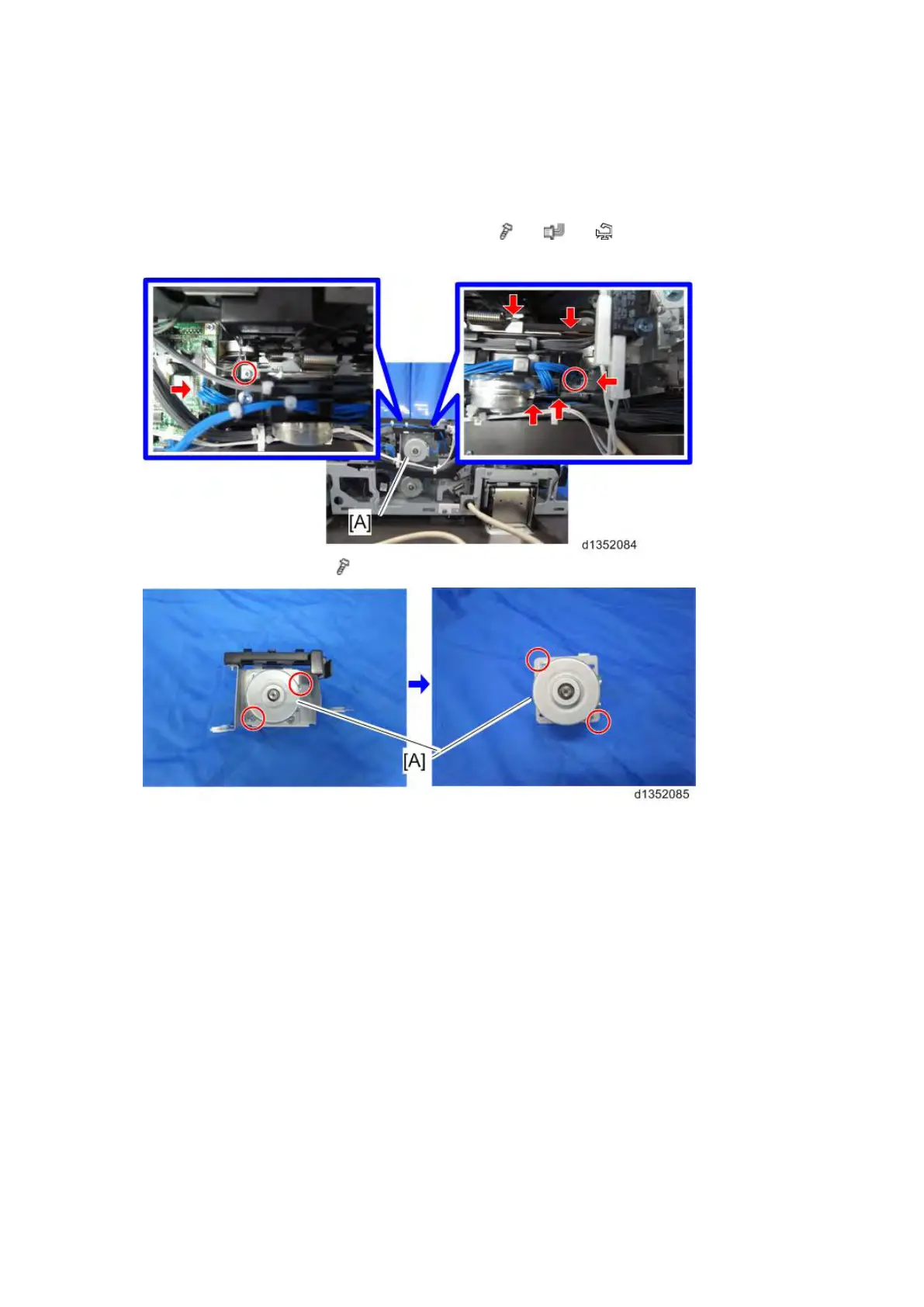

1.23 ADF ENTRANCE MOTOR

1. ADF rear cover (page 8 "ADF Rear Cover")

2. ADF entrance motor [A] along with the frame (

×2, ×2, ×2, spring×1, timing

belt×1)

3. ADF entrance motor [A] (

×4)
