Ricoh D147 - Toner Supply Cooling Fan; D148;D149;D150

To Next Page

To Previous Page

Fans/Filters

SM 4-163 D146/D147/D148/D149/D150

Replacement

and Adjustment

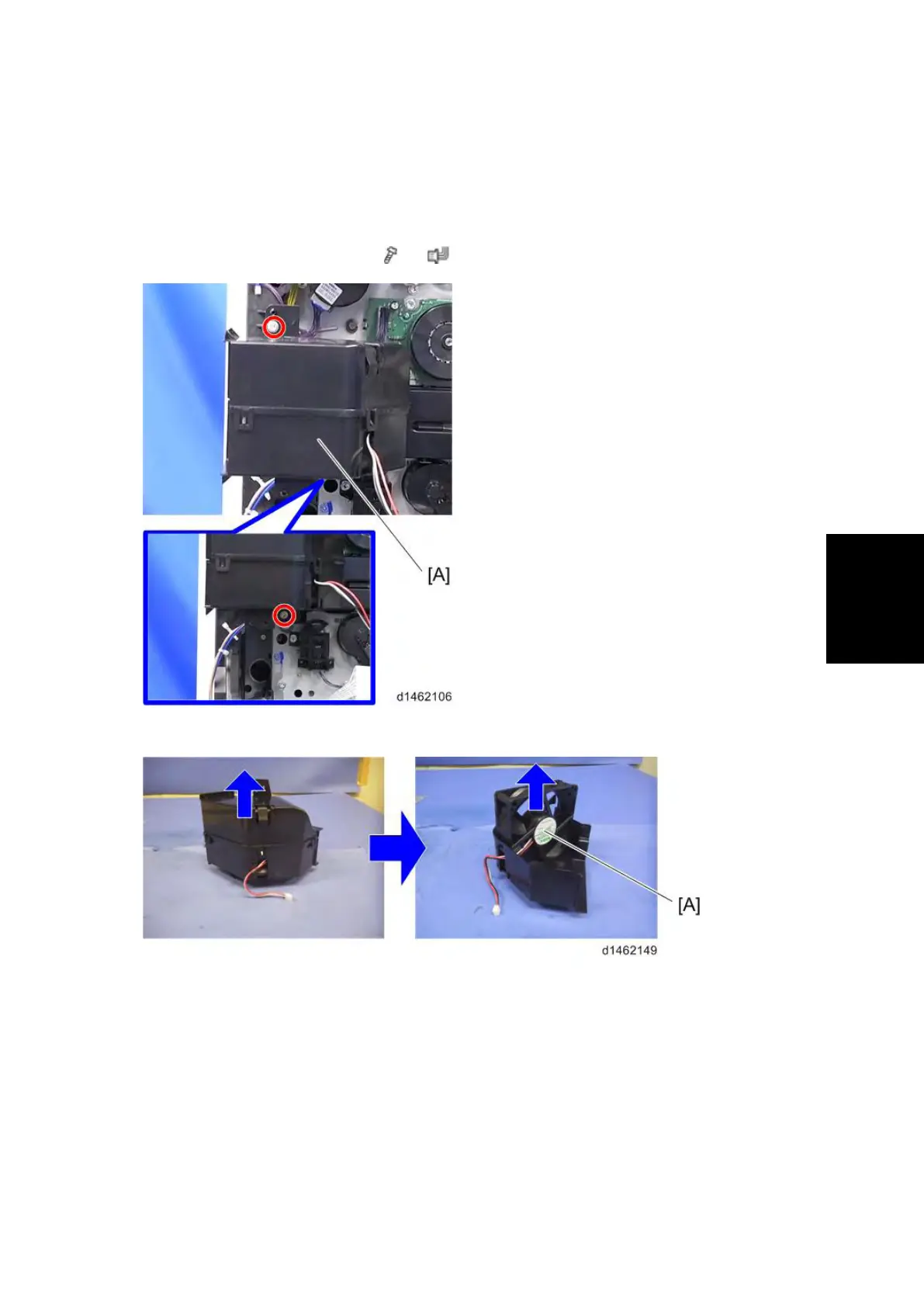

4.18.10 TONER SUPPLY COOLING FAN

D148/D149/D150

1. Drive cooling fan (page 4-161 "Drive Cooling Fan (D148/D149/D150)")

2. Toner supply cooling fan unit [A] ( ×2, ×1)

3. Toner supply cooling fan [A]
