Ricoh D147 - Odor Filter

To Next Page

To Previous Page

Fans/Filters

SM 4-157 D146/D147/D148/D149/D150

Replacement

and Adjustment

4.18.2 ODOR FILTER

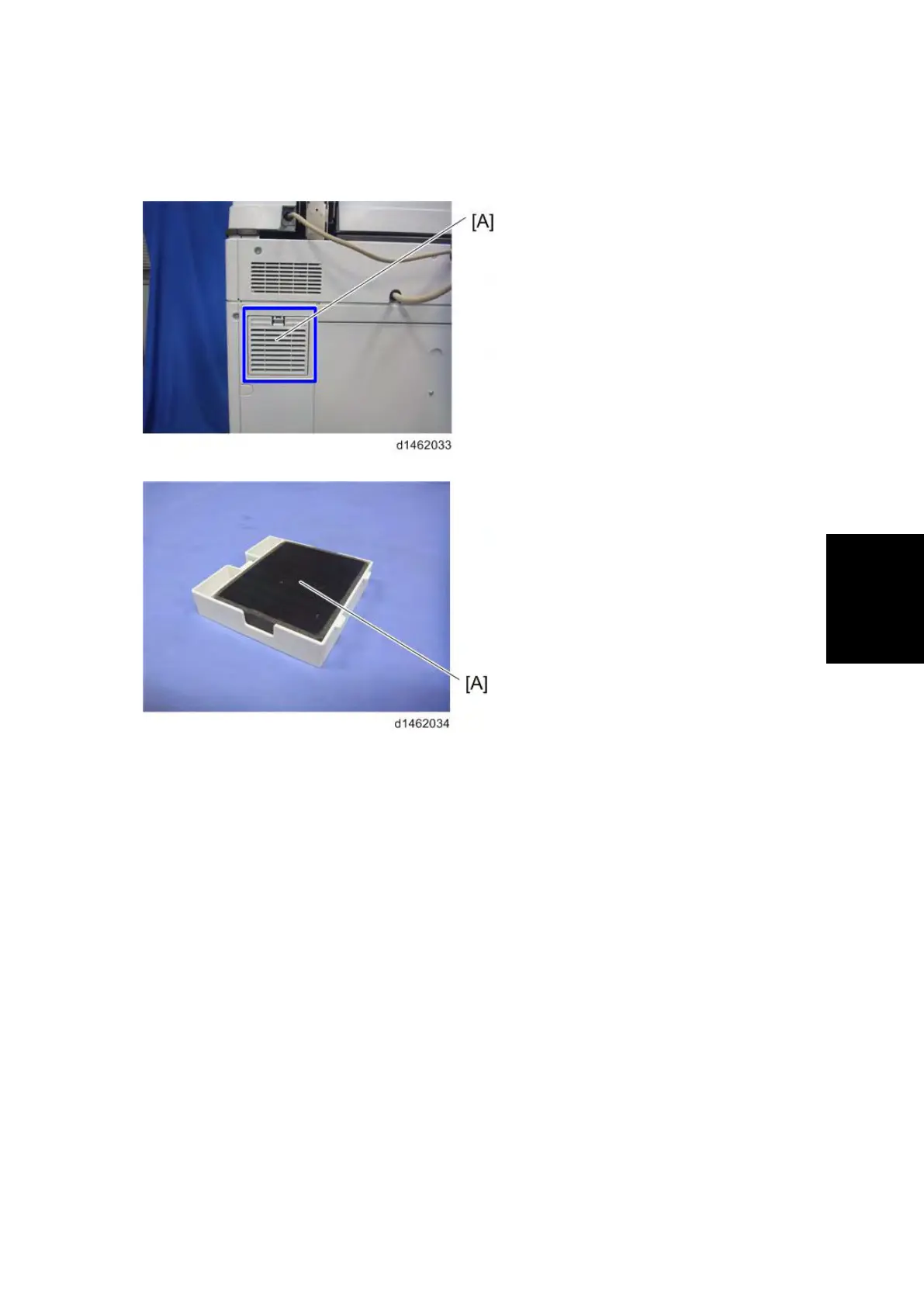

1. Odor filter box [A]

2. Odor filter [A]
