Rear Cover

SM 1 D696

LCIT RT3030

(D696)

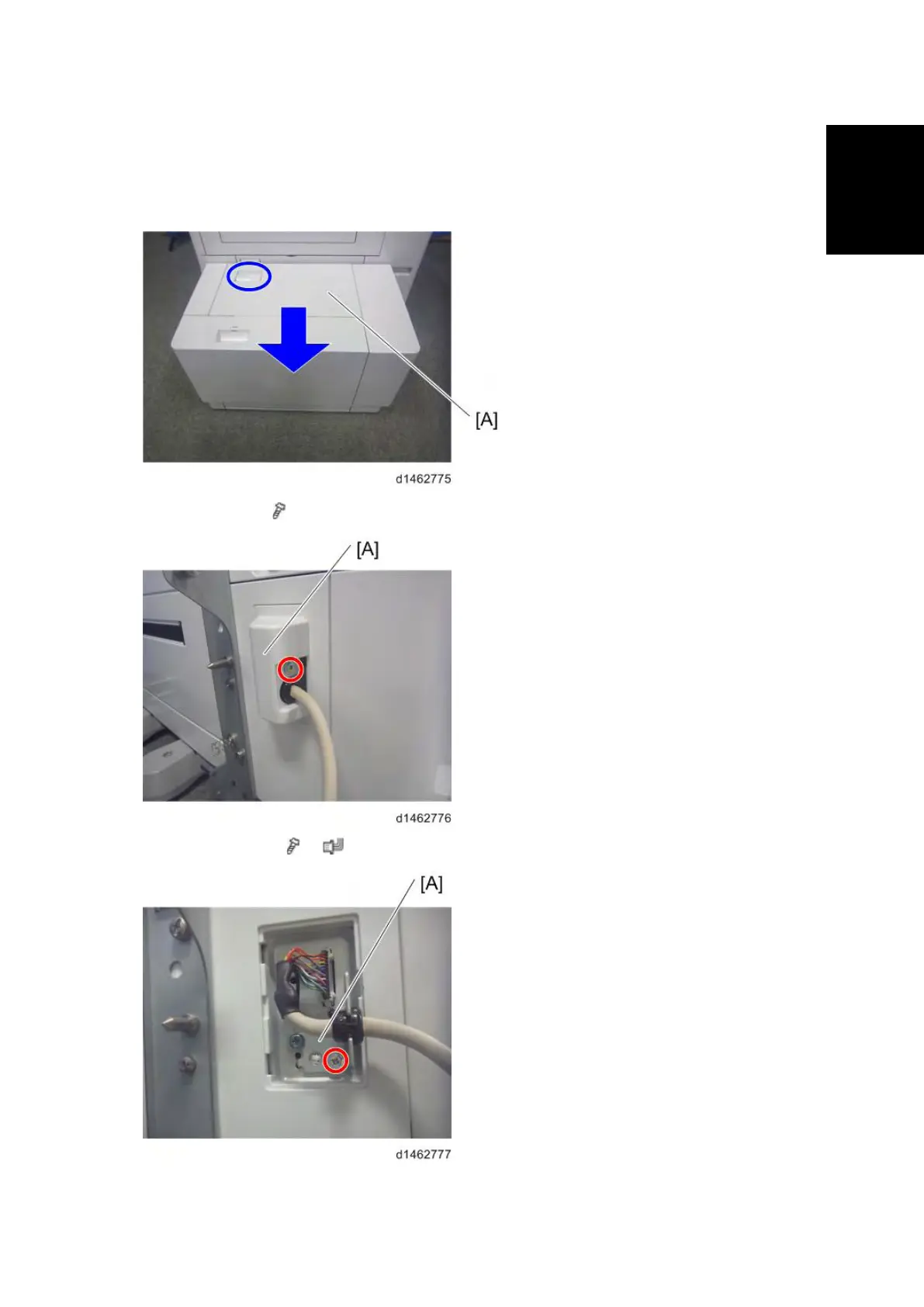

1.1 REAR COVER

1. Pull out the LCT [A].

2. Cable cover [A] (

×1)

3. Cable bracket [A] ( ×1, ×1)

4. Open the right cover [A].
