Ricoh D147 - Fusing Shield Position Sensor

Fusing Unit
D146/D147/D148/D149/D150 4-110 SM
4.12.15 FUSING SHIELD POSITION SENSOR
1. Fusing unit (page 4-99 "Fusing Unit")

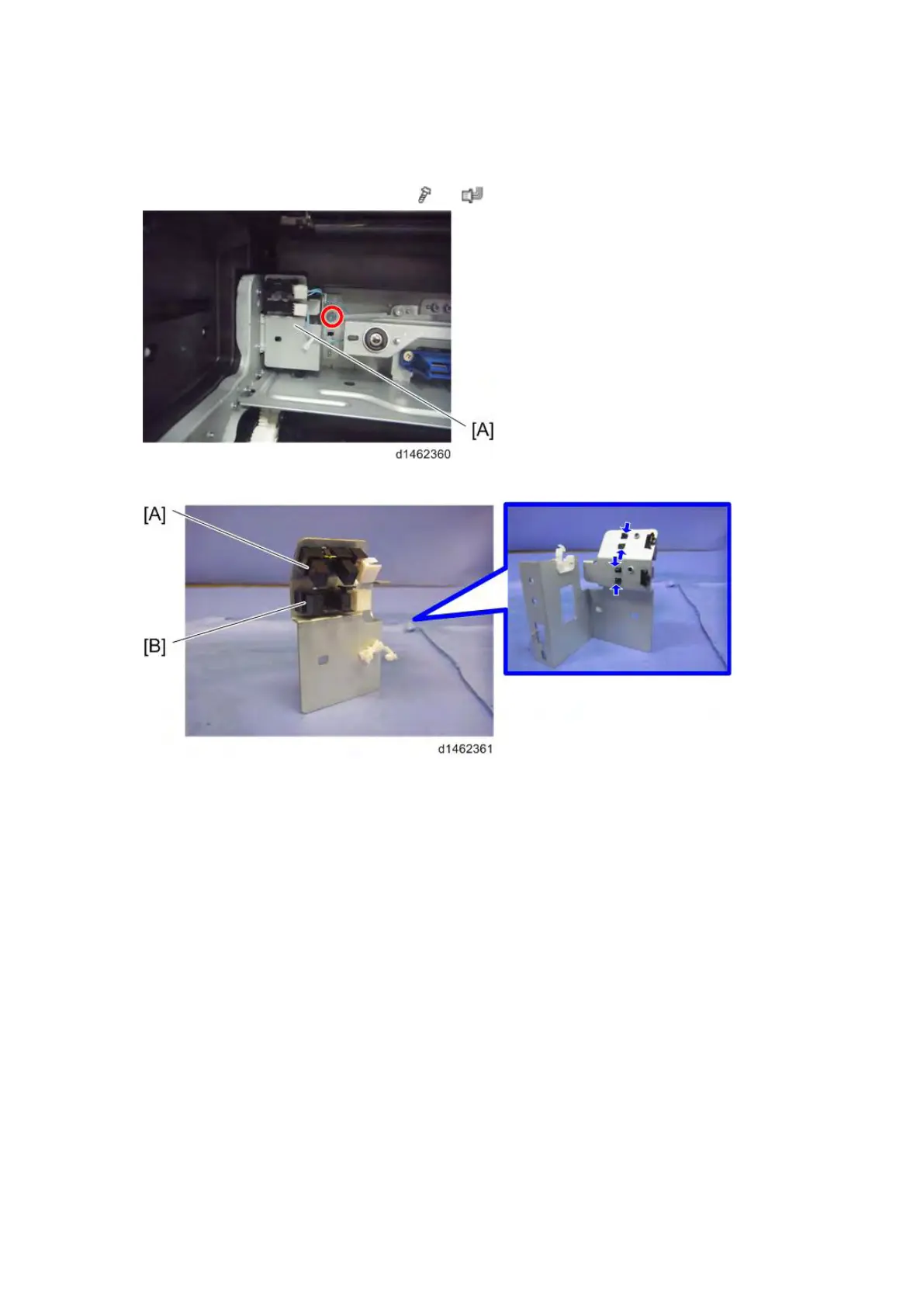

2. Fusing shield position sensor unit [A] ( ×1, ×2)
3. Fusing shield position sensor (upper) [A], Fusing shield position sensor (lower)[B]
