Transport Motor

D779 24 SM

1.19 TRANSPORT MOTOR

1. Rear cover ( page 1)

2. Harness guide (

page 19)

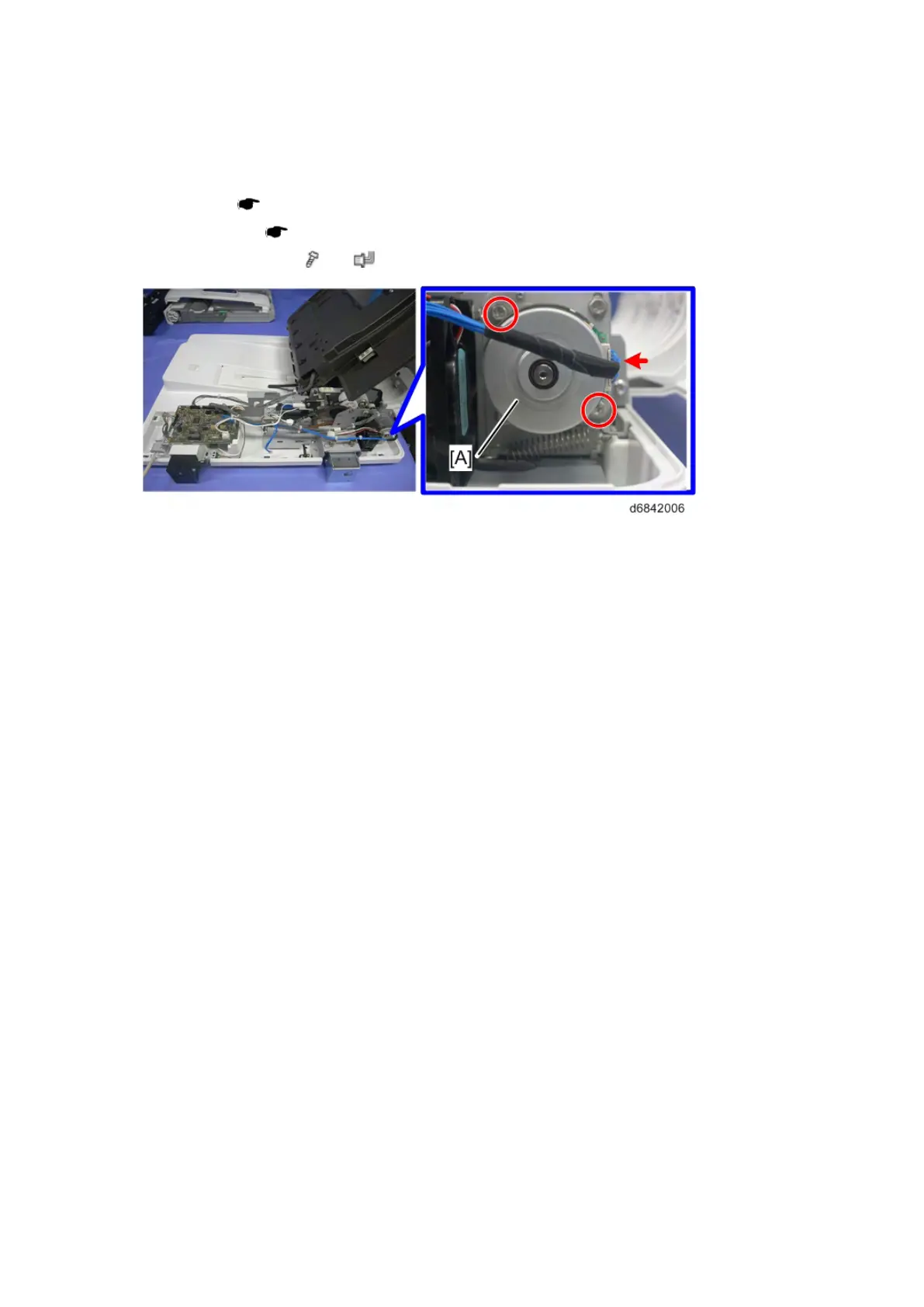

3. Transport motor [A] (

x 2, x 1)
