A4 LEF/LT LEF Sensor

SM 25 D683

SPDF DF3080

(D683)

1.19 A4 LEF/LT LEF SENSOR

1. ADF front cover (page 7 "ADF Front Cover")

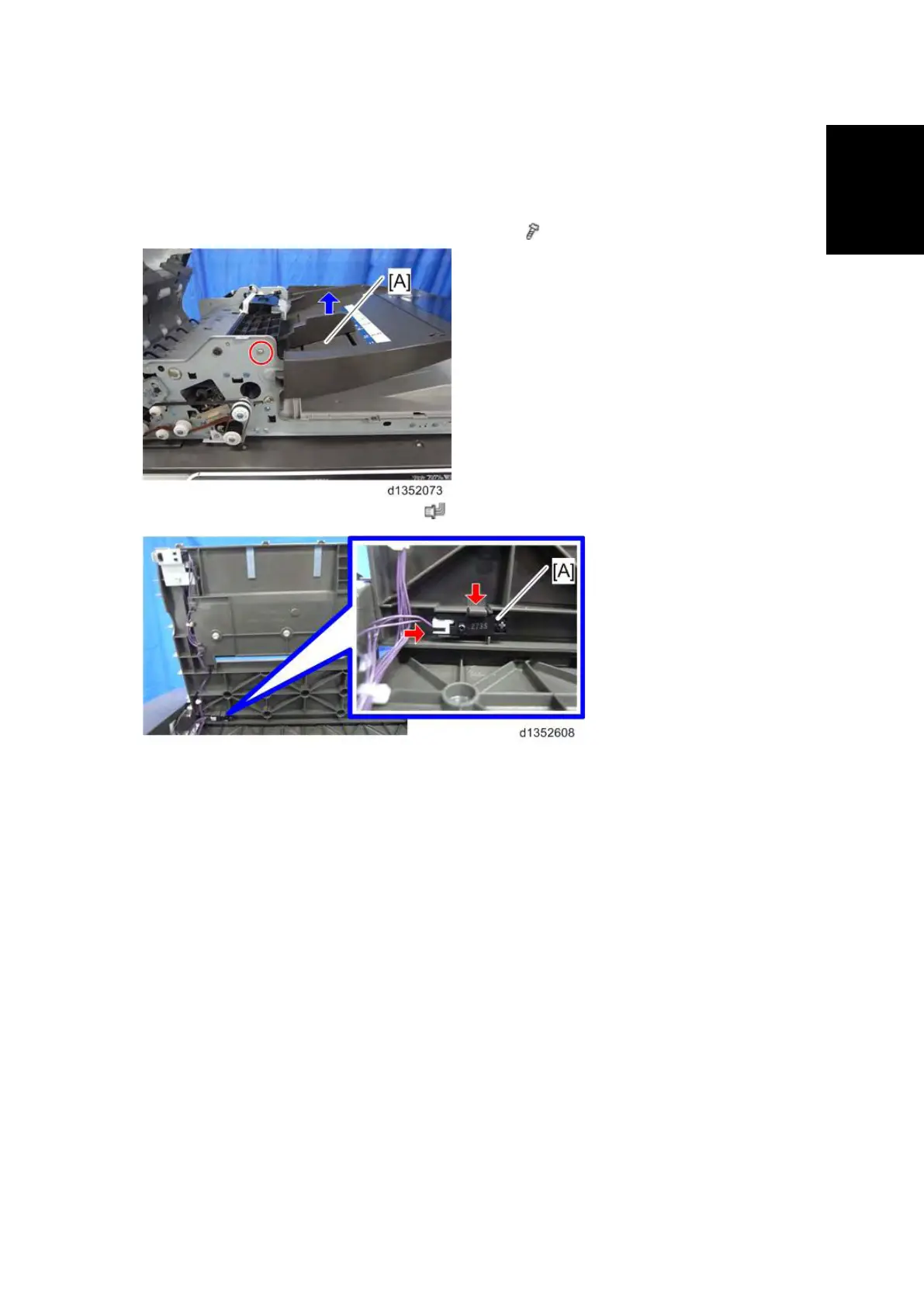

2. Remove the screw and raise the original tray [A] (

×1)

3. A4 LEF/LT LEF Sensor [A] (hook×1,

×1)
